Selector Lever Knob: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The O/D cancel switch and the SelectShift™ switch are part of the selector lever knob. To install a new O/D cancel switch or SelectShift™ switch, a new selector lever knob must be installed.
NOTE: Removal steps in this procedure may contain installation details.

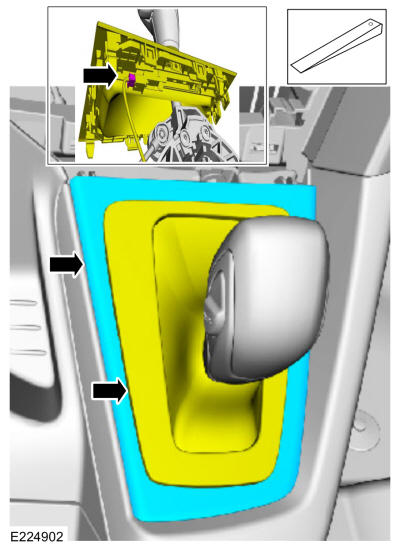

  1. Remove the selector lever bezel trim panel, detach the selector lever bezel and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
    GFD268477Courtesy of FORD MOTOR COMPANY

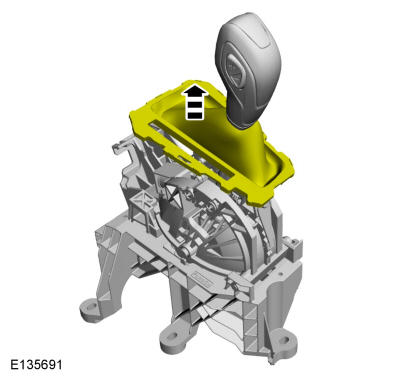

  2. Position the selector lever bezel out of the way.
    GFD268439Courtesy of FORD MOTOR COMPANY

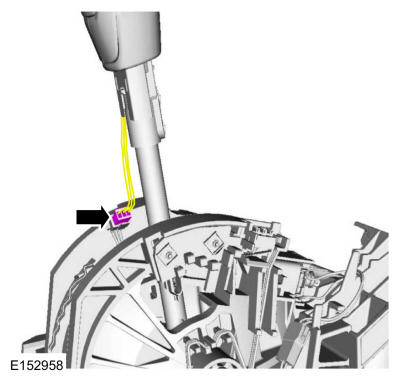

  3. Disconnect the selector lever electrical connector.
    GFD268440Courtesy of FORD MOTOR COMPANY

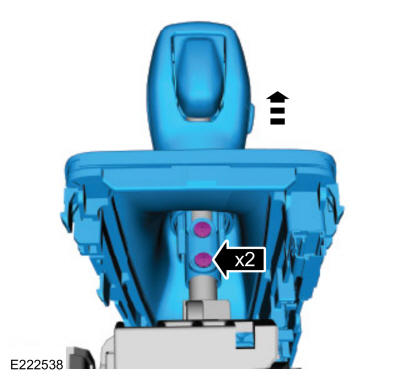

  4. Remove the screws and the selector lever knob and bezel as an assembly.
    GFD268478Courtesy of FORD MOTOR COMPANY

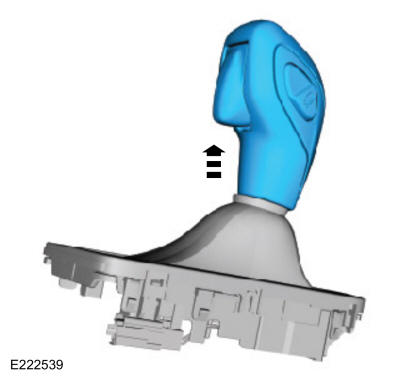

  5. Remove the selector lever knob.
GFD268479Courtesy of FORD MOTOR COMPANY
