Selector Lever Cable: Installation

WARNING: This page is about a different variant/trim than selected.

Install the selector lever cable.

Courtesy of FORD MOTOR COMPANY

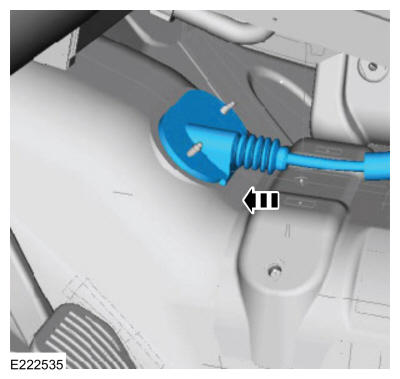

Attach the selector lever cable to the retainer.

Courtesy of FORD MOTOR COMPANY
Position the heat shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the splash shield bolts.

Courtesy of FORD MOTOR COMPANY
Install the splash shield and the retainers.

Courtesy of FORD MOTOR COMPANY

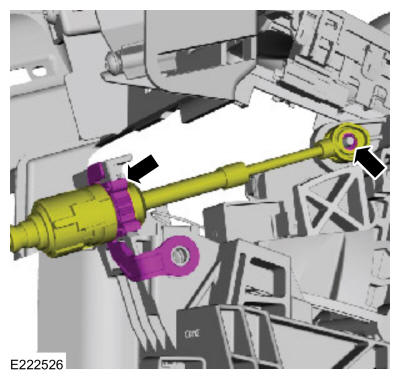

Connect the selector lever cable to the selector lever.

Courtesy of FORD MOTOR COMPANY
Install the selector lever cable clip bolt.

Courtesy of FORD MOTOR COMPANY
Install the nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bracket and the bolts.
1. Torque
  : 89 lb.in (10 Nm)
2. Torque
  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY

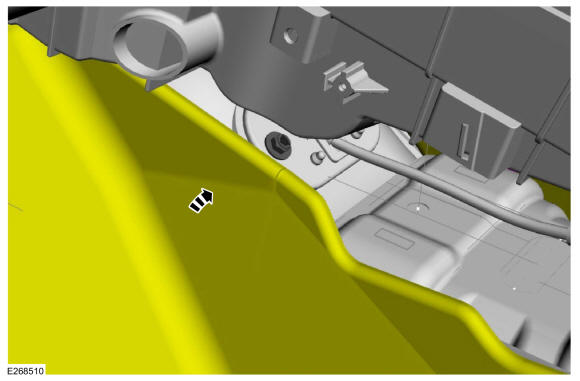

Position the carpet.

Courtesy of FORD MOTOR COMPANY

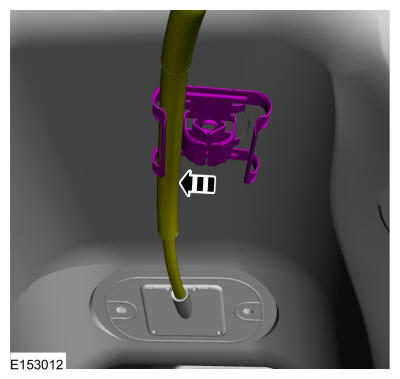

Position the wiring harness retainer and install the bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

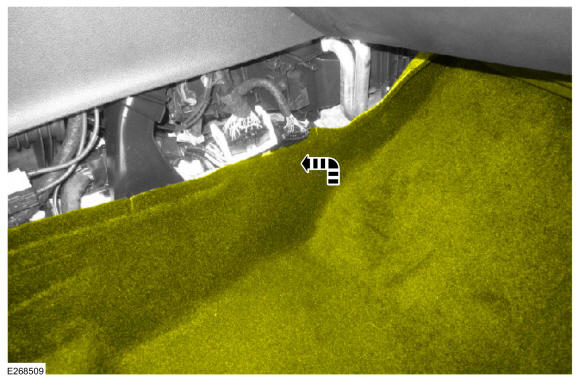

Position the carpet.

Courtesy of FORD MOTOR COMPANY
Install the floor console. Refer to: Floor Console - Vehicles Without: Center Armrest . Refer to: Floor Console - Vehicles With: Center Armrest .

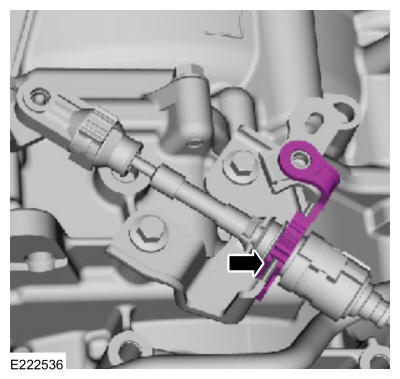

Install the selector lever cable clip on the transmission.

Courtesy of FORD MOTOR COMPANY
Install the selector lever cable clip bolt.

Courtesy of FORD MOTOR COMPANY
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Position the transmission manual lever in D.
1. Rotate the transmission manual lever counterclockwise until it stops.
2. Rotate the transmission manual lever 3 detents into D.
Courtesy of FORD MOTOR COMPANY
Pry up the selector lever cable adjuster lock.

Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Push the adjuster lock into place.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner. Refer to: Air Cleaner .
Verify that the engine starts in P and N only and that the reverse lamps illuminate in R.
