Selector Lever Bezel: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

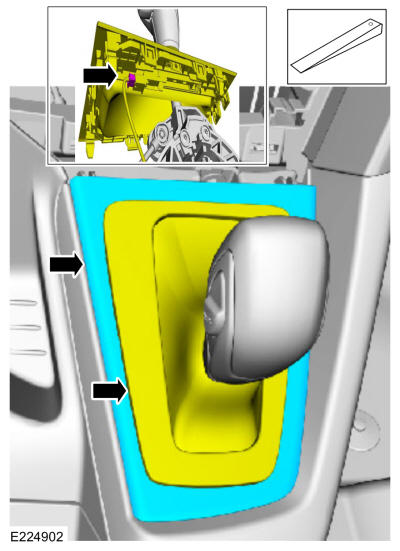

  1. Remove the selector lever bezel trim panel, detach the selector lever bezel and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
    GFD268459Courtesy of FORD MOTOR COMPANY

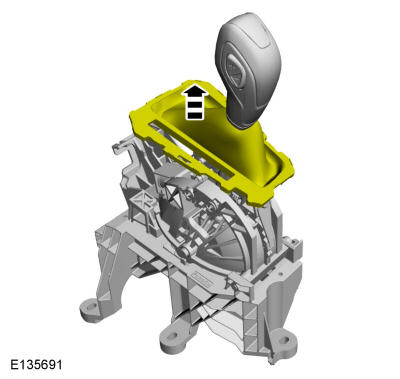

  2. Position the selector lever bezel out of the way.
    GFD268460Courtesy of FORD MOTOR COMPANY

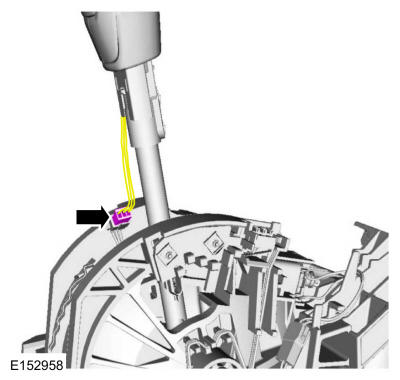

  3. Disconnect the selector lever electrical connector.
    GFD268461Courtesy of FORD MOTOR COMPANY

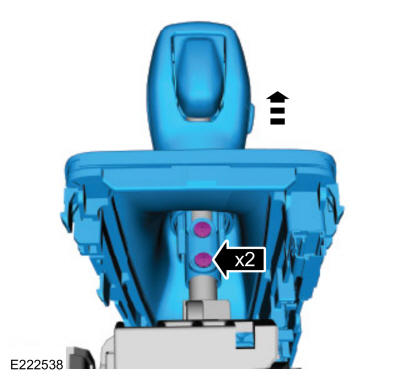

  4. Remove the screws and the selector lever knob and bezel as an assembly.
    GFD268462Courtesy of FORD MOTOR COMPANY

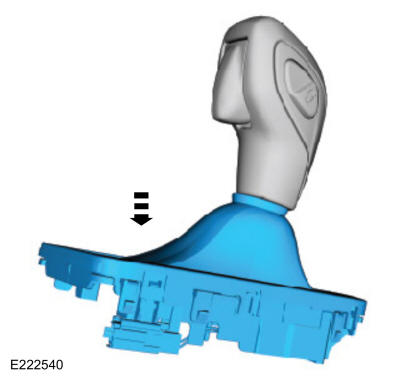

  5. Remove the selector lever bezel.
GFD268463Courtesy of FORD MOTOR COMPANY
