Selector Lever Assembly: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Prior to replacing the selector lever cable for a no start or a high shift effort concern, verify the selector lever cable-to-bracket clips are fully seated at the transmission and selector lever assembly. An unseated cable can cause selector lever cable binding and prevent the manual shaft from completely returning to the P position.
Torque
: 62 lb.in (7 Nm)
- Remove the floor console. Refer to: Floor Console - Vehicles With: Center Armrest . Refer to: Floor Console - Vehicles Without: Center Armrest .
- Remove the selector lever cable clip bolt.
Torque
: 62 lb.in (7 Nm)
-
NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
Using a screwdriver, pry the selector lever cable end from the selector lever and disconnect the selector lever cable clip from the selector lever assembly.

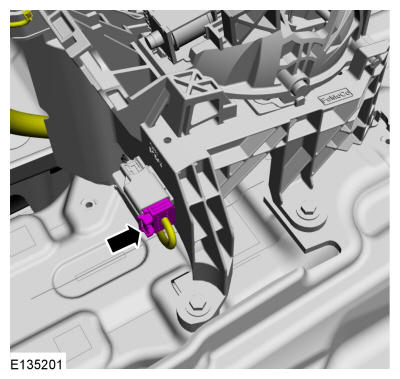

- Disconnect the selector lever electrical connector.

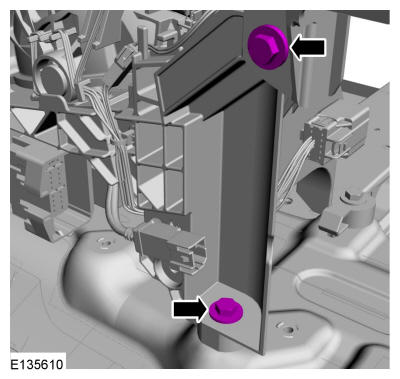

- Remove the bracket-to-selector lever bolts.
Torque
: 80 lb.in (9 Nm)

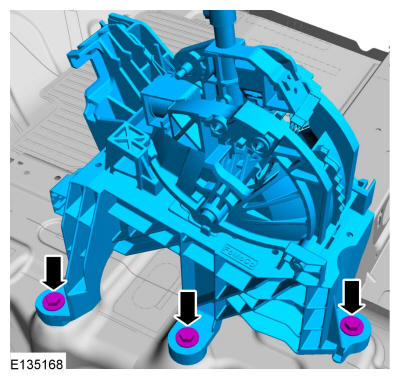

- Remove the bolts and the selector lever.
Torque
: 80 lb.in (9 Nm)
