Transmission Fluid Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

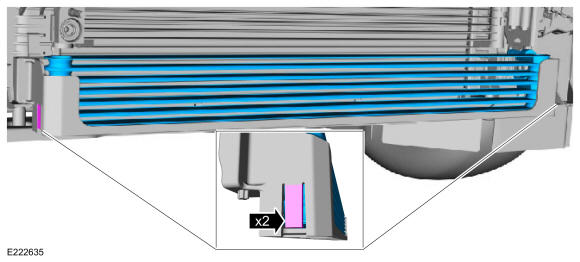

  1. Install the transmission fluid cooler.
    GFD268402Courtesy of FORD MOTOR COMPANY
  2. Connect the transmission fluid cooler hoses and position the clamps.
    GFD266773Courtesy of FORD MOTOR COMPANY
  3. Install the active grille shutter. Refer to: ACTIVE GRILLE SHUTTER - 1.0L ECOBOOST (92KW/125PS) .
  4. Check and adjust the transmission fluid level. Refer to: Transmission Fluid Level Check .
