Transmission Internal Wiring Harness Frame: Installation

WARNING: This page is about a different variant/trim than selected.

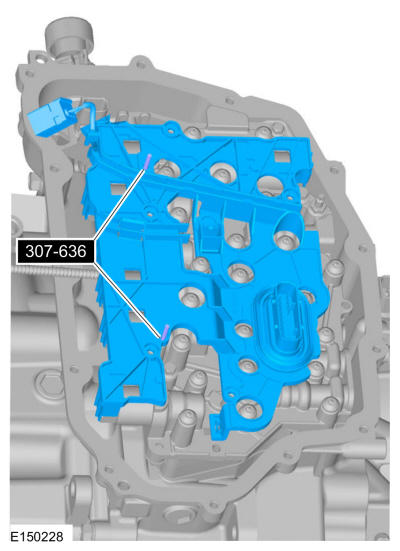

  1. Install the special tools in the solenoid body to align the transmission internal wiring harness frame during installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.
    GFD268039Courtesy of FORD MOTOR COMPANY

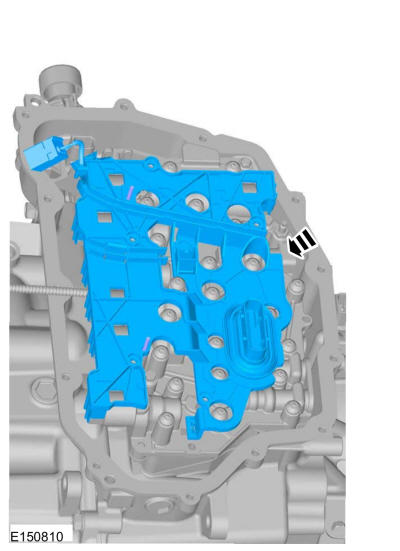

  2. Position the transmission internal wiring harness frame on the special tools and carefully install the transmission internal wiring harness frame by pushing straight down into the solenoids.
    GFD268040Courtesy of FORD MOTOR COMPANY

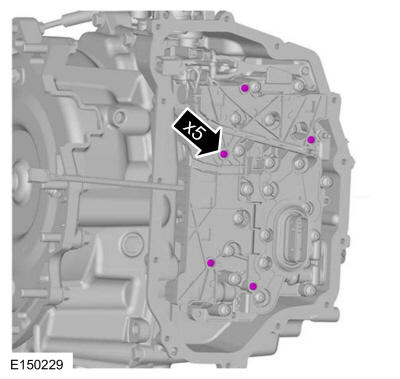

  3. Install the transmission internal wiring harness frame screws.

    Torque: 35 lb.in (4 Nm)

    GFD268041Courtesy of FORD MOTOR COMPANY

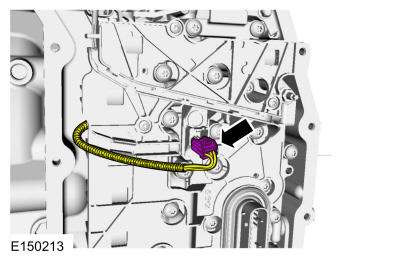

  4. Connect the OSS sensor electrical connector.
    GFD268003Courtesy of FORD MOTOR COMPANY

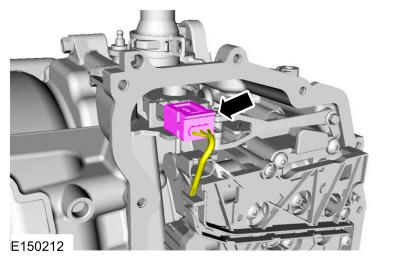

  5. Connect the TR sensor electrical connector.
    GFD268002Courtesy of FORD MOTOR COMPANY

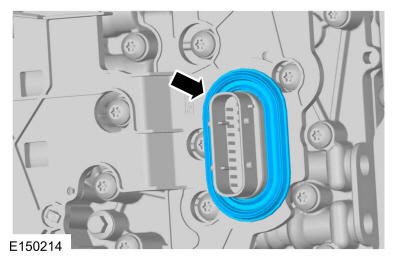

  6. Install the main control-to-cover seal.
    GFD268004Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. Refer to: Main Control Cover .
