Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. If equipped, remove the engine undershield. Refer to: Engine Undershield .

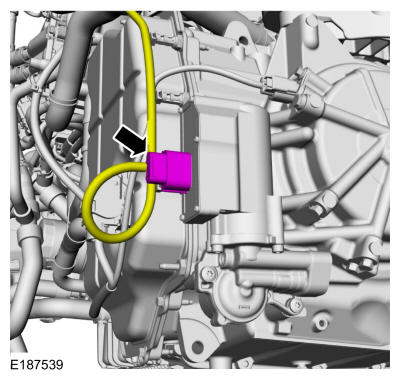

  3. Disconnect the transmission fluid auxiliary pump electrical connector.
    GFD268029Courtesy of FORD MOTOR COMPANY

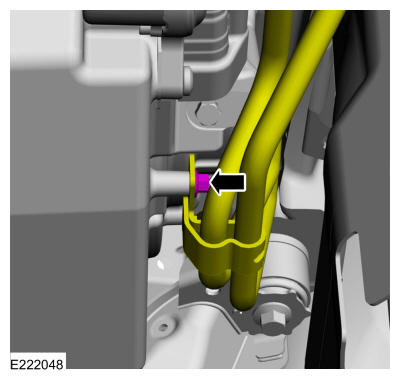

  4. Remove the transmission fluid cooler tube bolt.
    GFD268030Courtesy of FORD MOTOR COMPANY

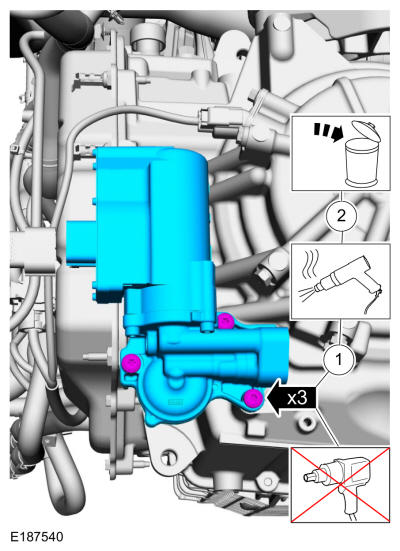

  5. NOTE: Do not use power tools to remove the transmission fluid auxiliary pump bolts or damage can occur.
    NOTE: Be prepared to collect escaping fluid.

    Remove the bolts and the transmission fluid auxiliary pump.

    1. Apply heat to the bolts to soften the Loctite®. Use the General Equipment: Hot Air Gun
    2. Remove and discard the bolts.

    GFD268031Courtesy of FORD MOTOR COMPANY

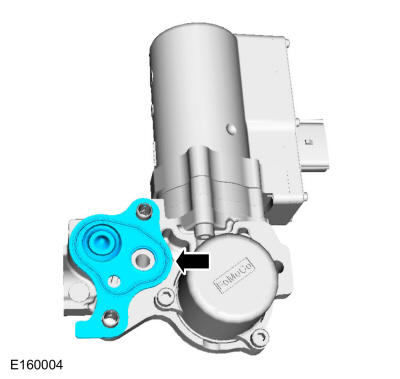

  6. Remove the transmission fluid auxiliary pump gasket.
    GFD268032Courtesy of FORD MOTOR COMPANY

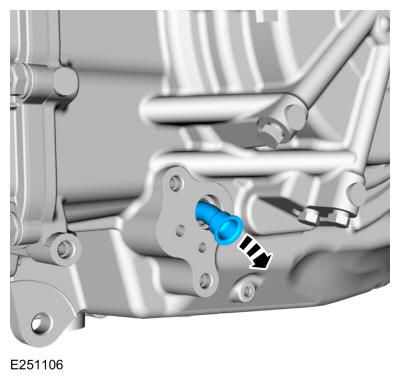

  7. Remove the transmission fluid auxiliary pump supply tube assembly.
    GFD268033Courtesy of FORD MOTOR COMPANY

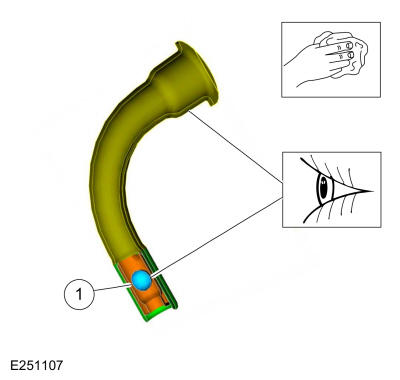

  8. Clean and inspect the transmission fluid auxiliary pump supply tube and check ball.

    1. Check ball (part of the transmission fluid auxiliary pump supply tube)

GFD268034Courtesy of FORD MOTOR COMPANY
