Selector Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

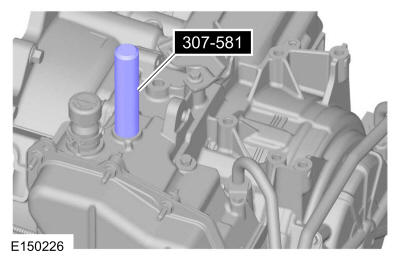

  1. Using the special tool, install the new selector shaft seal. Use Special Service Tool: 307-581 Manual lever seal installer.
    GFD268022Courtesy of FORD MOTOR COMPANY
  2. Install the TR sensor. Refer to: Transmission Range (TR) Sensor .
