Roll Restrictor RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the engine undershield. Refer to: Engine Undershield .

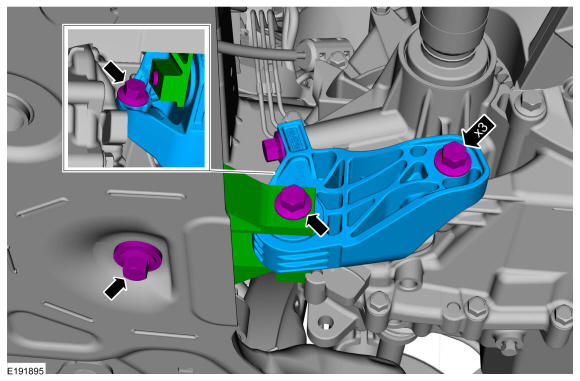

  3. Remove the bolts, roll restrictor and the bracket.
GFD268019Courtesy of FORD MOTOR COMPANY
