Roll Restrictor RH: Installation
WARNING: This page is about a different variant/trim than selected.

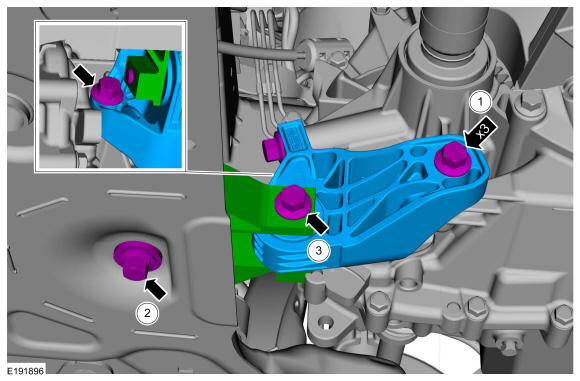

- Install the roll restrictor, bracket and the bolts.
- Torque
: 59 lb.ft (80 Nm)
- Torque
: 76 lb.ft (103 Nm)
- Torque
: 76 lb.ft (103 Nm)
- Torque
- Install the engine undershield. Refer to: Engine Undershield .
