Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the main control valve body. Refer to: Main Control Valve Body .

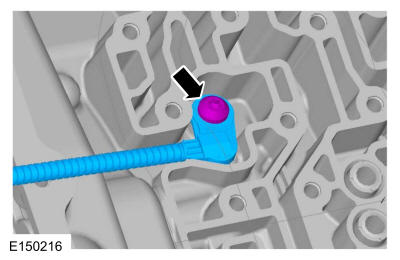

  2. Remove the OSS sensor bolt and the OSS sensor.

    Torque: 89 lb.in (10 Nm)

GFD268018Courtesy of FORD MOTOR COMPANY
