Main Control Valve Body: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the main control cover. Refer to: Main Control Cover .
Disconnect the TR sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the OSS sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the main control-to-cover seal.

Courtesy of FORD MOTOR COMPANY
NOTE: The main control should be handled with care or damage to the main control may occur.

NOTE: Note the location of the short and long main control-to-transmission case bolts for reassembly.

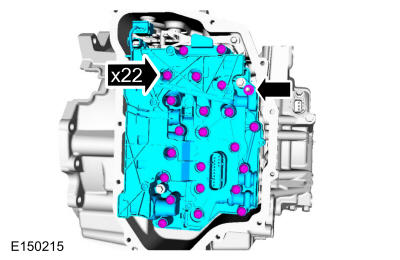

Remove the main control nut, the main control-to-transmission case bolts and the main control.

Courtesy of FORD MOTOR COMPANY

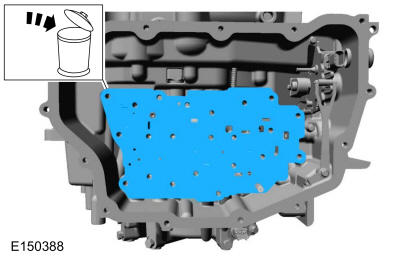

Remove and discard the main control-to-transmission case separator plate.

Courtesy of FORD MOTOR COMPANY
Remove the solenoid body-to-valve body bolts and separate the solenoid body from the main control valve body.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the balls does not escape when removing bolts.

Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.

Courtesy of FORD MOTOR COMPANY
