Main Control Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the transmission main control cover seal for damage and install new if necessary.

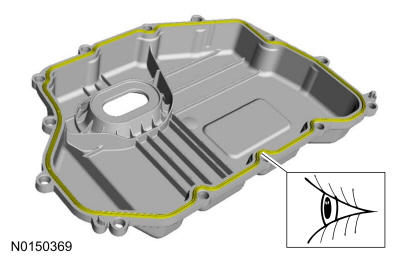

    GFD268001Courtesy of FORD MOTOR COMPANY
  2. NOTE: Install the studbolts in the locations noted during removal.

    Install the main control cover, the bolts and the stud bolts.

    Torque: 106 lb.in (12 Nm)

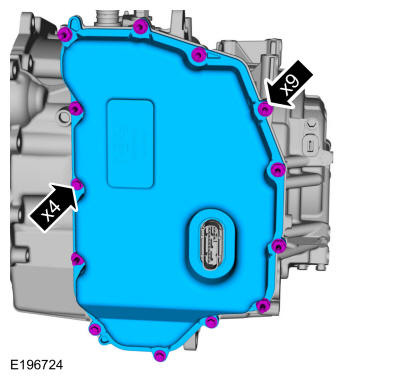

    GFD268000Courtesy of FORD MOTOR COMPANY
  3. Install the wiring harness brackets and the nuts.

    Torque: 80 lb.in (9 Nm)

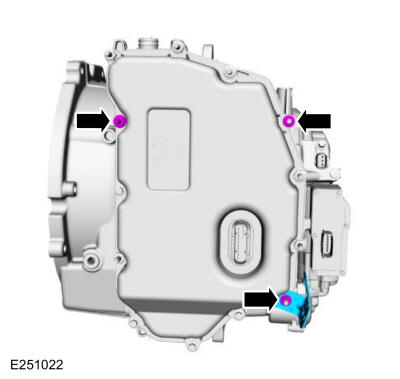

    GFD267999Courtesy of FORD MOTOR COMPANY
  4. Position back the wiring harness and coolant hose. Connect the wiring harness retainers and install the ground bolt.

    1. Ground bolt.

      Torque: 18 lb.ft (25 Nm)

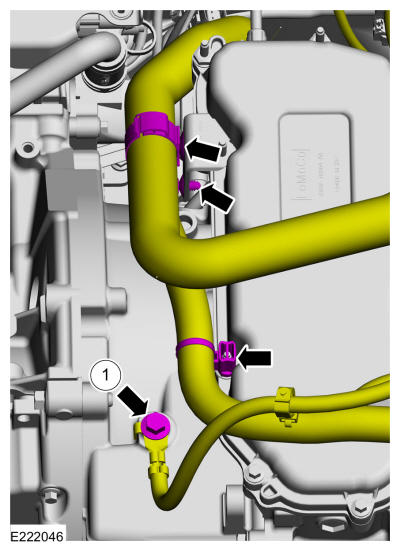

    GFD267998Courtesy of FORD MOTOR COMPANY
  5. Connect the wiring harness retainers, connect the transmission electrical connector and the auxiliary pump electrical connector.

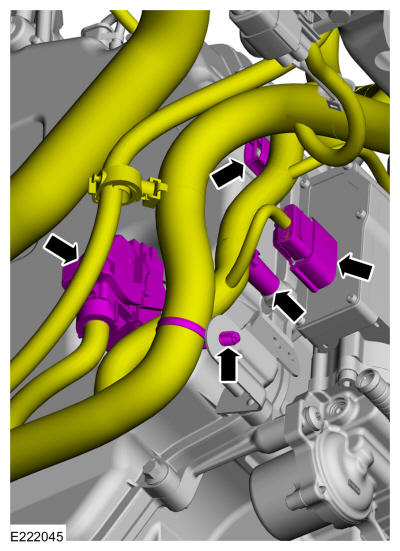

    GFD267997Courtesy of FORD MOTOR COMPANY
  6. Connect the TSS sensor and the wiring harness retainer.

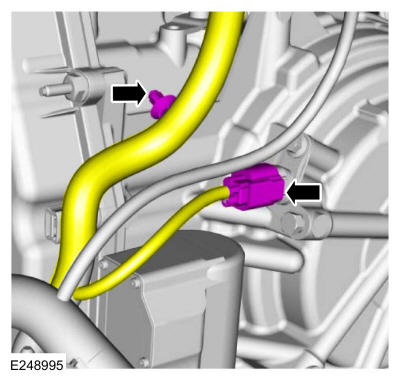

    GFD267996Courtesy of FORD MOTOR COMPANY
  7. Install the air cleaner assembly. Refer to: Air Cleaner .
  8. Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
  9. Install the engine undershield. Refer to: Engine Undershield .
