Halfshaft Seal RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the RH halfshaft. Refer to: Front Halfshaft RH .

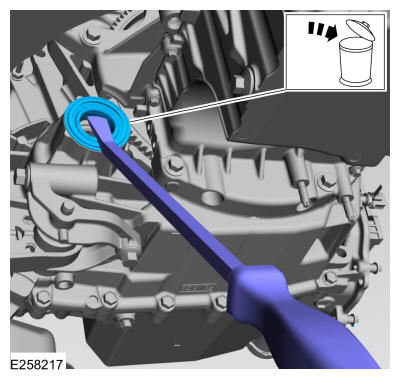

  2. Remove the halfshaft seal. Use the General Equipment: Flat-Bladed Screwdriver
GFD268065Courtesy of FORD MOTOR COMPANY
