Halfshaft Seal RH: Installation

WARNING: This page is about a different variant/trim than selected.

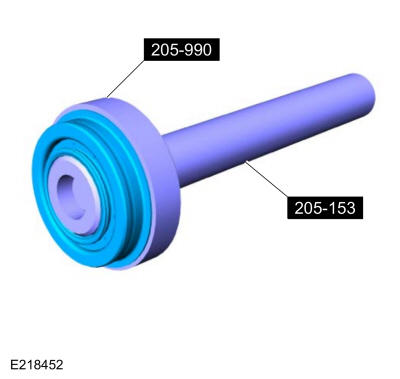

  1. Install a new halfshaft seal on the special tool. Use Special Service Tool: 205-990 Installer, Axle Seal, 205-153 (T80T-4000-W) Handle.
    GFD267981Courtesy of FORD MOTOR COMPANY

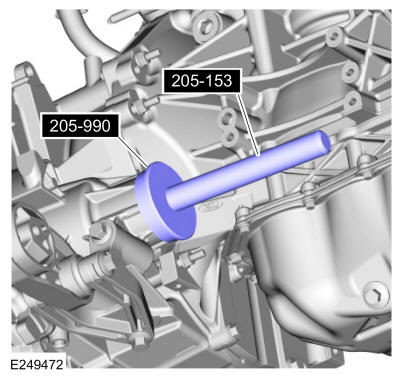

  2. Using the special tool, install the halfshaft seal. Use Special Service Tool: 205-990 Installer, Axle Seal, 205-153 (T80T-4000-W) Handle.
    GFD268066Courtesy of FORD MOTOR COMPANY
  3. Install the RH halfshaft. Refer to: Front Halfshaft RH .
  4. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
