Main Control Valve Body

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-636 Alignment Pins- Valve Body TKIT-2008ET-FLM TKIT-2008ET-ROW
Flat Headed Screw Driver
Long Nose Pliers

Main Control Valve Body and Solenoid Body

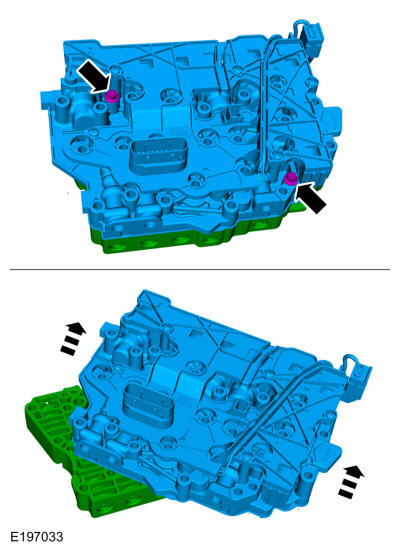

Remove the solenoid body-to-valve body bolts and separate the solenoid body from the valve body.

Courtesy of FORD MOTOR COMPANY

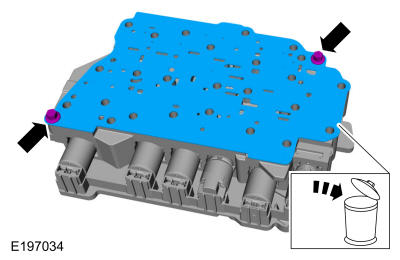

Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.

Courtesy of FORD MOTOR COMPANY

Main Control Valve Body and Solenoid Body

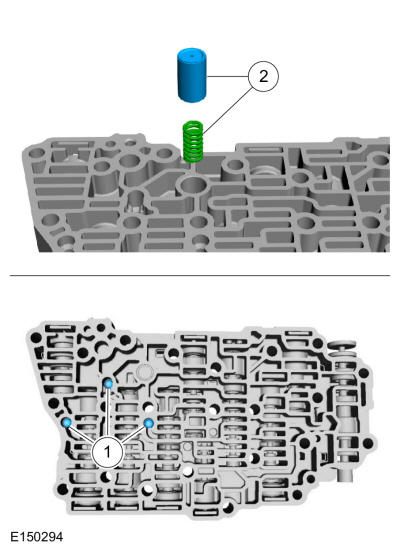

Remove the check balls and the damper.
1. Check balls
2. Solenoid damper
Courtesy of FORD MOTOR COMPANY

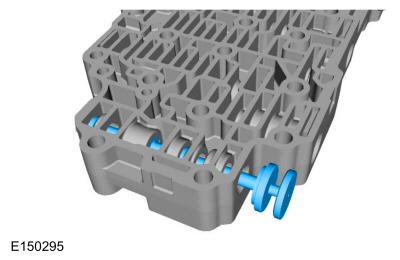

Remove the manual valve.

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores or by threading a 4-mm bolt into the valves and pulling them out. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Arrange the parts as they are removed to avoid mixing similar pieces.

NOTE: The bypass valve is held in with a spring-loaded retainer. Be careful not to lose the retainer when removing it.

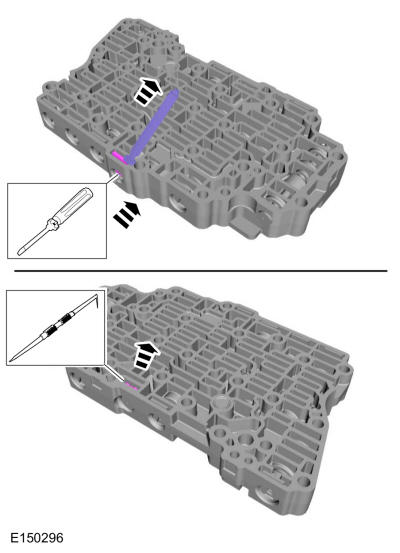

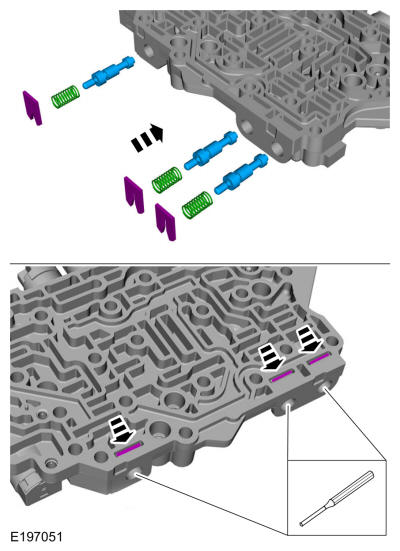

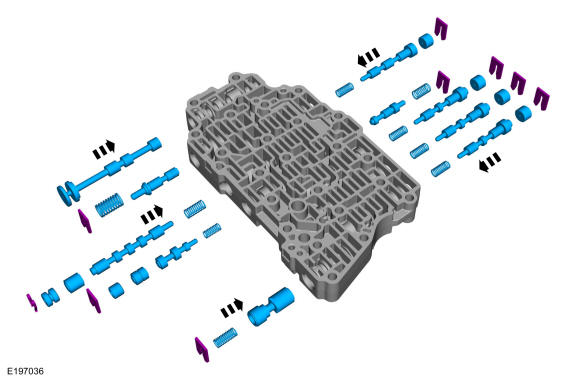

Compress the valve springs with a screwdriver and remove the retainers with a magnet. Use a pick to remove the bypass valve retainer. Remove the individual valves and springs from the main control valve body by tapping the valve body on the palm of the hand to slide the valves out of the bores. If needed, use a 4-mm bolt to thread into the valve plugs to remove. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely, install a new assembly.

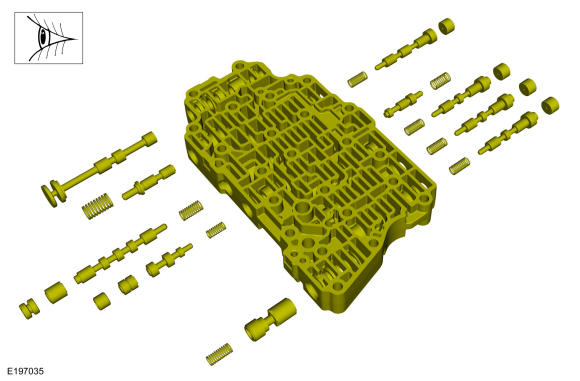

Clean the valves, springs and main control valve body.

Courtesy of FORD MOTOR COMPANY

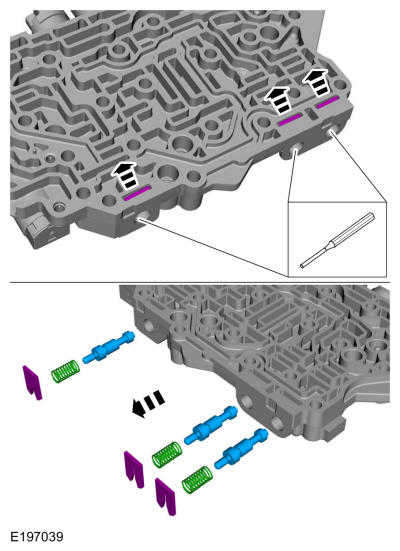

Install the valve body valves, springs and retaining clips in the main control valve body. For valve and spring locations. Refer to: Main Control Valve Body .

Courtesy of FORD MOTOR COMPANY
Install the manual valve in the valve body.

Courtesy of FORD MOTOR COMPANY
Install the check balls and the solenoid damper.
1. Check balls
2. Solenoid damper
Courtesy of FORD MOTOR COMPANY

Solenoid Body
Remove the solenoid dampers.

Courtesy of FORD MOTOR COMPANY

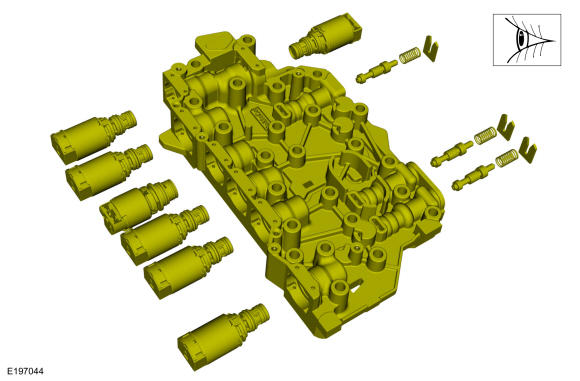

Compress the valve springs and remove the retainers with a magnet. Remove the individual valves and springs from the solenoid body by tapping it on the palm of the hand to slide the valves out of the bores. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to bend or twist the transmission internal wiring harness frame or solenoid terminals when removing the transmission internal wiring harness frame or damage can occur.

Remove the screws and carefully remove the transmission internal wiring harness frame from the solenoids by lifting it evenly straight up.

Courtesy of FORD MOTOR COMPANY
NOTE: The solenoids are calibrated from the factory and are not all the same. Failure to mark the solenoids to the ports they were originally in can result in mixing the solenoids and cause damage to the transmission or a harsh shift.

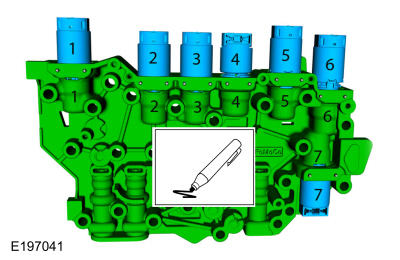

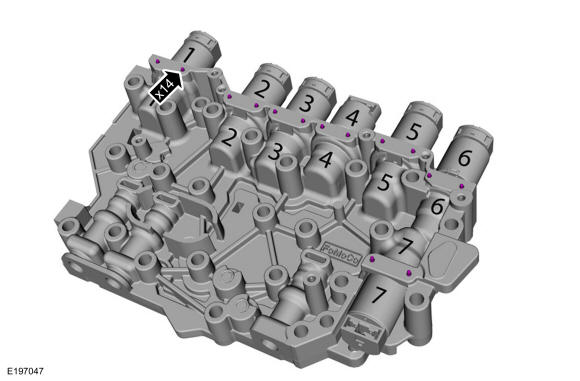

Using a paint marker, number the solenoids and the solenoid body to correspond with the ports from which the solenoids are located in the solenoid body

Courtesy of FORD MOTOR COMPANY

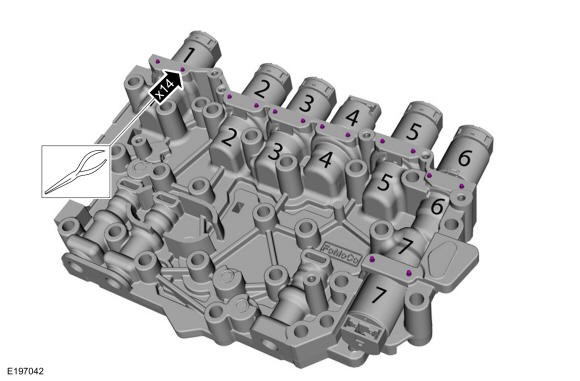

Remove the solenoid retaining pins. Use the General Equipment: Long Nose Pliers

Courtesy of FORD MOTOR COMPANY

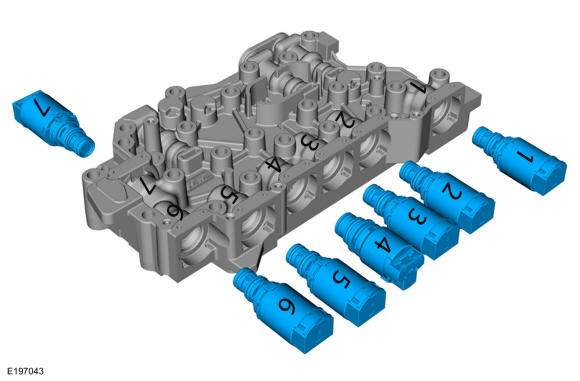

Remove the solenoids from the solenoid body.

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to wash the numbers from the solenoids or the solenoid body. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.

NOTE: Do not stone or polish any valves or damage to the valves can occur. If the valves do not move freely during assembly, install a new solenoid body.

Clean and inspect the solenoid body, solenoids and valve assemblies for damage.

Courtesy of FORD MOTOR COMPANY
Inspect the solenoid screens for debris that may restrict fluid flow through the screen.

Courtesy of FORD MOTOR COMPANY
NOTE: The solenoids are calibrated from the factory and are not all the same. Failure to install the solenoids in the ports they were originally in can result in damage to the transmission or a harsh shift.

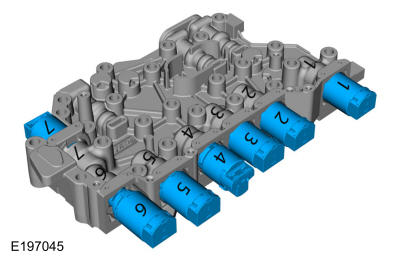

If new solenoid(s) are not being installed, position the solenoids in their corresponding solenoid body ports.

Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new Variable Force Solenoid (VFS), determine the base part number of the solenoid(s). The TCC solenoid, SSA and SSC are all normally low pressure solenoids. The LPC solenoid, SSB and SSD are all normally high pressure solenoids. SSE is not a Variable Force Solenoid (VFS); it is an ON/OFF solenoid.
1. Line Pressure Control (LPC) solenoid (normally high) part number 7G383
2. SSC (normally low) part number 7G383
3. TCC solenoid (normally low) part number 7G383
4. SSE (normally closed [OFF]) part number 7G484
5. SSA (normally low) part number 7G383
6. SSB (normally high) part number 7G383
7. SSD (normally high) part number 7G383
8. Solenoid body part number 7G391
Courtesy of FORD MOTOR COMPANY
If installing new solenoids, note the color of the plastic nozzle and the large O-ring. High pressure solenoids, such as the LPC solenoid, SSB and SSD, have black plastic nozzles and orange O-rings. Low pressure solenoids, such as the TCC solenoid, SSA and SSC, have brown plastic nozzles and green O-rings. The solenoids can only be replaced with the same color solenoid.

Courtesy of FORD MOTOR COMPANY
Determine the part number suffix by checking the solenoid service band number etched on the side of the solenoid. The band number is next to the two-dimensional matrix barcode on the side of the solenoid and will be a 1, 2, 3, 4 or 5. Determine the part number suffix and match the new solenoid base part number and suffix with the old solenoid.
1. = (B)
2. = (C)
3. = (D)
4. = (E)
5. = (F)
Courtesy of FORD MOTOR COMPANY
Install the solenoid(s) in the solenoid body.

Courtesy of FORD MOTOR COMPANY
Install the solenoid retaining pin(s).

Courtesy of FORD MOTOR COMPANY

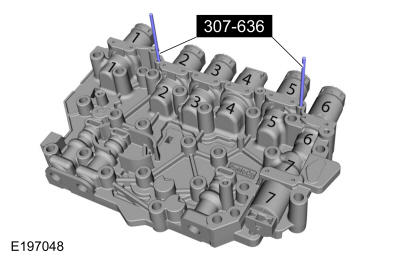

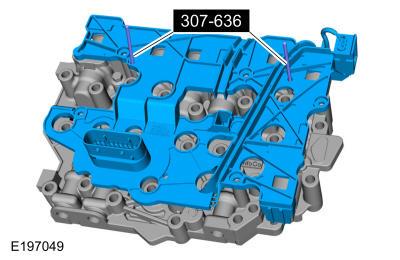

Install the special tools in the solenoid body to align the transmission internal wiring harness frame for installation. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.

Courtesy of FORD MOTOR COMPANY
NOTE: Be careful not to bend or twist the transmission internal wiring harness frame or solenoid terminals when removing the transmission internal wiring harness frame or damage can occur.

Position the transmission internal wiring harness frame on the guide pins and carefully install the transmission internal wiring harness frame by pushing it straight down into the solenoids. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.

Courtesy of FORD MOTOR COMPANY
Install the transmission internal wiring harness frame screws.
Torque: 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the valves do not move freely during assembly, install a new solenoid body. Failure to install a new solenoid body can result in a harsh shift or damage to the transmission.

Install the solenoid body valves, springs and retaining clips in the solenoid body. For valve and spring locations Refer to: Main Control Valve Body . Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

Main Control Valve Body and Solenoid Body

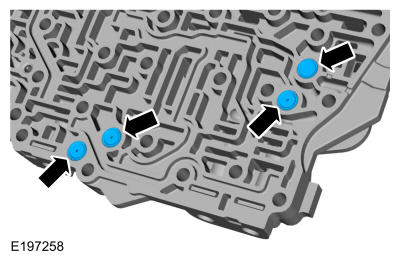

Install the solenoid dampers.

Courtesy of FORD MOTOR COMPANY

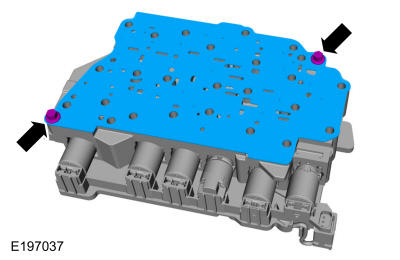

Install the new separator plate and the separator plate-to-solenoid body bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

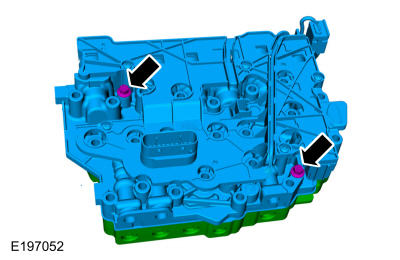

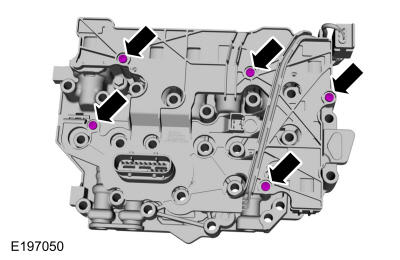

Position the solenoid body assembly on the valve body and install the solenoid body-to-valve body bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
