Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.

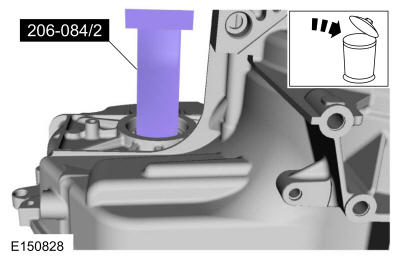

  1. NOTE: Press the bushing out of the transmission case from the outside to the inside so the transmission case rests on a flat surface.

    Using the special tools, remove and discard the LH transmission case bushing from the transmission case. Use Special Service Tool: 206-084 Installer, Wheel Speed Sensor Ring. Use the General Equipment: Hydraulic Press

    GFD268384Courtesy of FORD MOTOR COMPANY
  2. Remove the differential ring gear snap ring. Use the General Equipment: Flat Headed Screw Driver
    GFD268385Courtesy of FORD MOTOR COMPANY
  3. Remove the differential ring gear.
GFD268386Courtesy of FORD MOTOR COMPANY
