Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

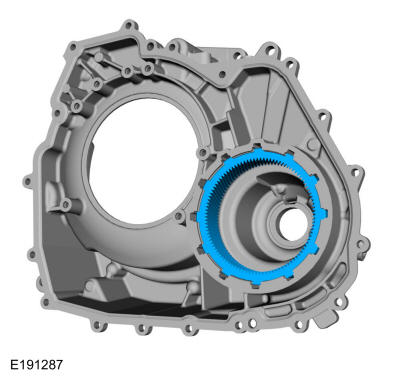

  1. Install the differential ring gear in the torque converter housing.
    GFD268386Courtesy of FORD MOTOR COMPANY
  2. NOTE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transmission.
    NOTE: Make sure the snap ring is seated in the groove.

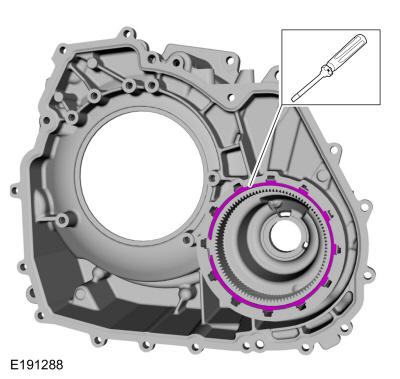

    Install the beveled differential ring gear snap ring with the flat side facing down. Use the General Equipment: Flat Headed Screw Driver

    GFD268385Courtesy of FORD MOTOR COMPANY
  3. Install a new bushing on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-664 Case Bushing Installer.
    GFD268387Courtesy of FORD MOTOR COMPANY

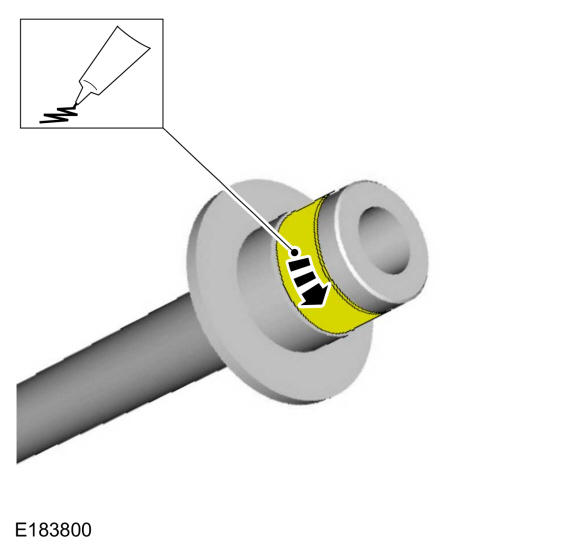

  4. Place a small amount of Retaining Compound on only the outside of the entire outer circumference of the new red Teflon® coated bushing before installation.

    Material: Loctite® 648 / 1835922 (WSK-M2G349-A4)

    GFD268388Courtesy of FORD MOTOR COMPANY

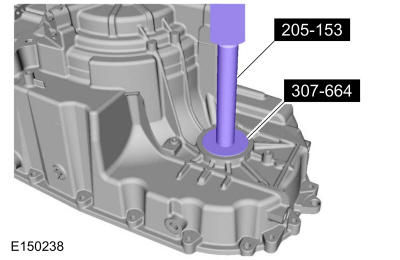

  5. Using the special tool, install the new bushing in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-664 Case Bushing Installer. Use the General Equipment: Hydraulic Press
GFD268389Courtesy of FORD MOTOR COMPANY
