Automatic transmission 6F15 - 1.5L Duratec
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|

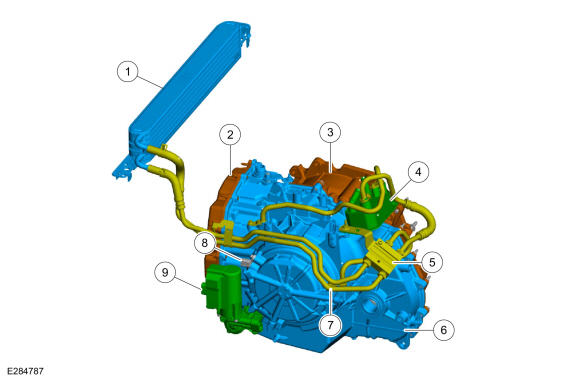

| Item |
Description |
| 1 |
Oil cooler assembly |
| 2 |
Transmission side cover |
| 3 |
Torque converter housing |
| 4 |
Transmission fluid warmer |
| 5 |
Thermal bypass valve |
| 6 |
Transmission housing |
| 7 |
Oil cooler tube assembly |
| 8 |
Turbine shaft speed sensor |
| 9 |
Auxiliary pump |
