Input Shaft
WARNING: This page is about a different variant/trim than selected.

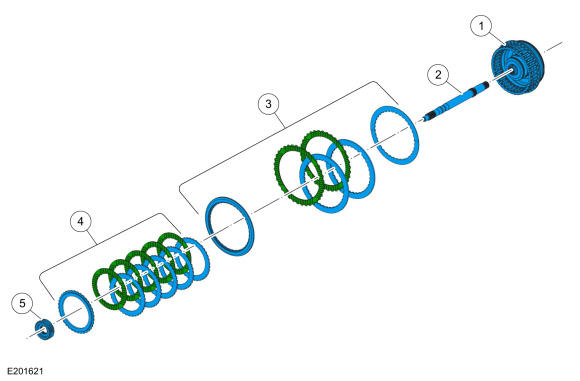

Input Shaft Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Direct (3, 5, R)/overdrive (4, 5, 6) clutch hub |
| 2 | - | Input shaft |
| 3 | - | Direct (3, 5, R) clutch |
| 4 | - | Overdrive (4, 5, 6) clutch |
| 5 | - | Center planetary sun gear |

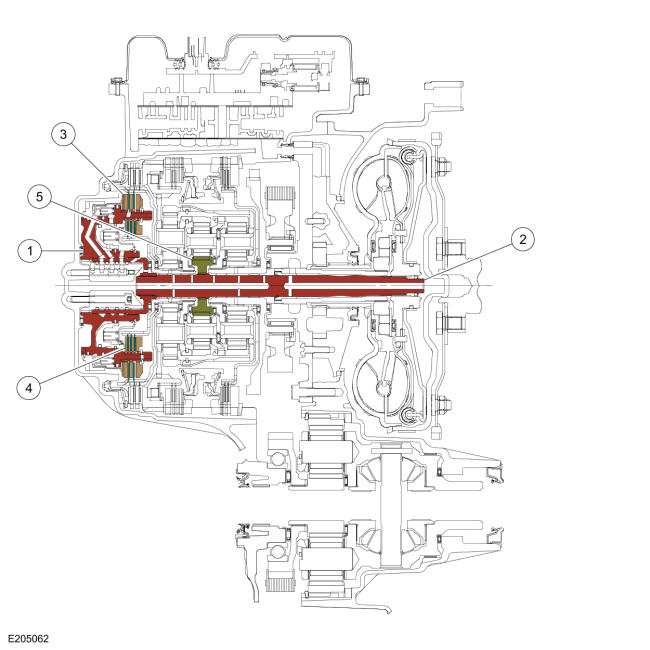

Input Shaft Cutaway View
Input Shaft
The input shaft is splined to the torque converter turbine, the center planetary sun gear, and the direct / overdrive hub. The input shaft transfers power from the torque converter to the center planetary gearset through the center sun gear. The input shaft transfers power to the rear planetary gearset through the direct (3, 5, R) and overdrive (4, 5, 6) clutches.
