Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Engine Cooling System Health and Safety Precautions .
  2. Refer to: AIR CLEANER .
  3. WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
    GFD266904Courtesy of FORD MOTOR COMPANY

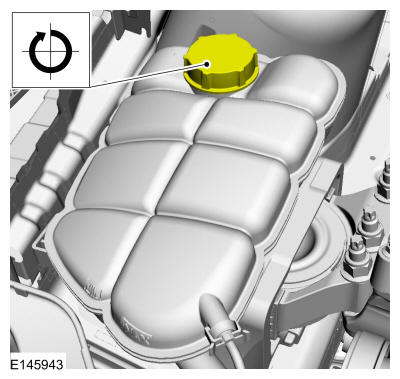

    GFD267390Courtesy of FORD MOTOR COMPANY
  4. Torque

    : 115 lb.in (13 Nm)

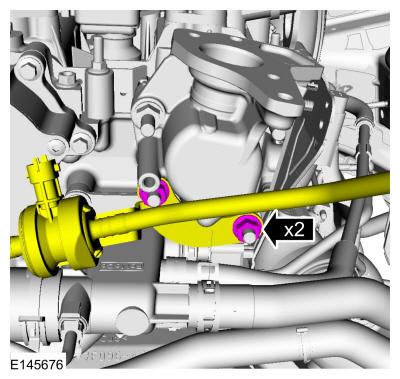

    GFD267391Courtesy of FORD MOTOR COMPANY
  5. NOTE: Be prepared to collect escaping fluid.

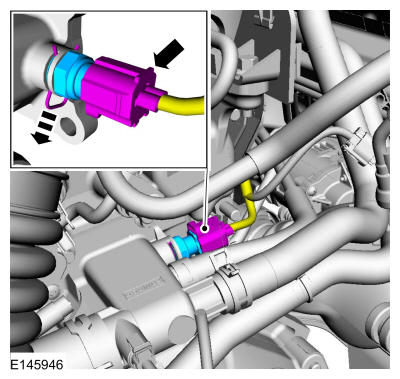

GFD267392Courtesy of FORD MOTOR COMPANY
