Variable Camshaft Timing (VCT) Unit: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: New bolts must be installed.

NOTE: Do not tighten the bolts at this time.

NOTE: The bolts will be tightened during the timing drive chain installation procedure.

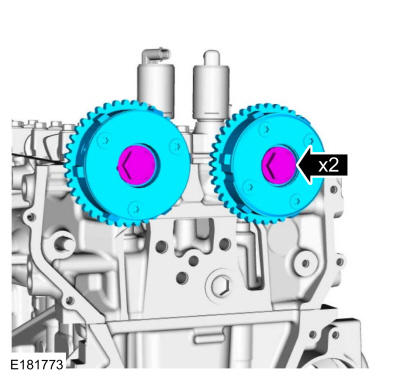

Install and the VCT units and the new bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the timing chain. Refer to: Timing Chain .
