Valve Stem Seals: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Camshafts .
NOTE: Note the position of the components before removal.

NOTE: Make sure that the components are installed to the position noted before removal.

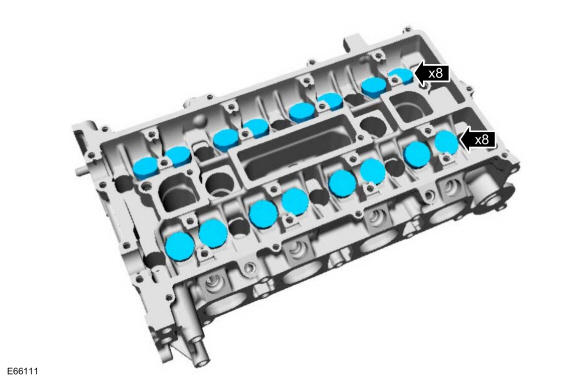

Courtesy of FORD MOTOR COMPANY
NOTE: Use compressed air at 7 to 10 bars (100-150 psi). Do not disconnect the compressed air from the cylinder until the valve spring, valve spring retainer and valve collet is installed. Any loss of air pressure will allow the valve to fall into the cylinder.

NOTE: Using some multi-purpose grease and a small screwdriver will aid in the removal of the valve collet.
1. Apply compressed air to the cylinder.
2. Remove the valve collet, valve spring retainer and the valve spring. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor., 303-1249 Valve Spring Compressor.
  Material

  : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
Courtesy of FORD MOTOR COMPANY
Use Special Service Tool: 303-468 (T94P-6510-AH) Remover, Valve Stem Oil Seal., 307-005 (T59L-100-B) Slide Hammer.

Courtesy of FORD MOTOR COMPANY
