Valve Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

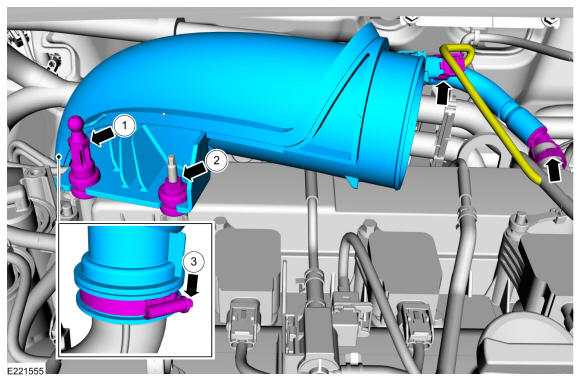

  1. Refer to: Ignition Coil-On-Plug .
    1. Torque

      : 89 lb.in (10 Nm)

    2. Torque

      : 89 lb.in (10 Nm)

    3. Torque

      : 44 lb.in (5 Nm)

    GFD265895Courtesy of FORD MOTOR COMPANY

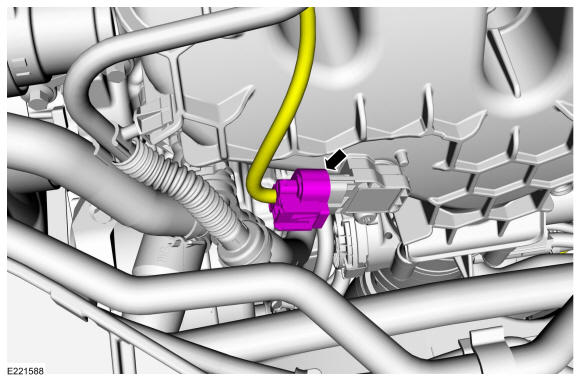

    GFD265896Courtesy of FORD MOTOR COMPANY

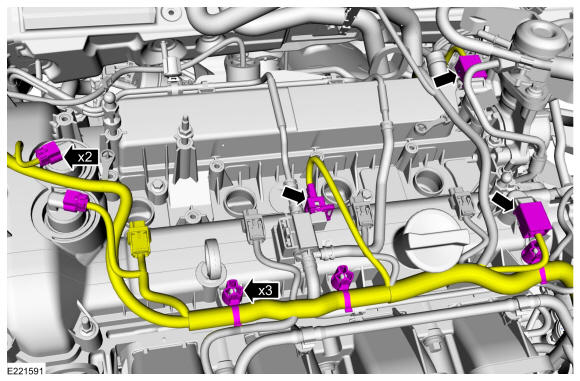

    GFD265897Courtesy of FORD MOTOR COMPANY

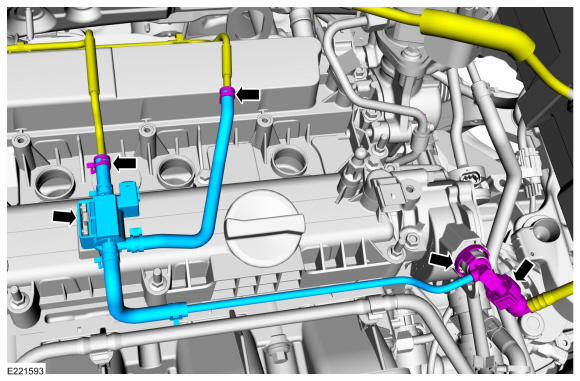

  3. Use the General Equipment: Hose Clamp Remover/Installer
    GFD265898Courtesy of FORD MOTOR COMPANY

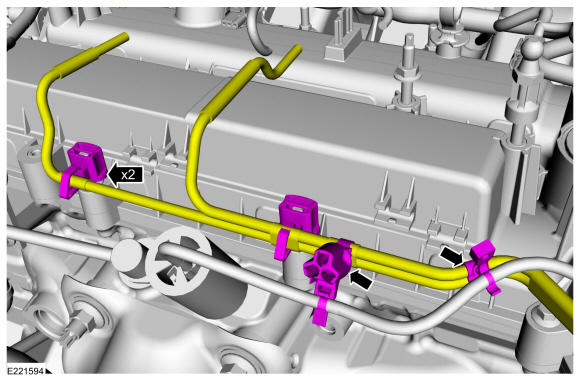

    GFD265899Courtesy of FORD MOTOR COMPANY

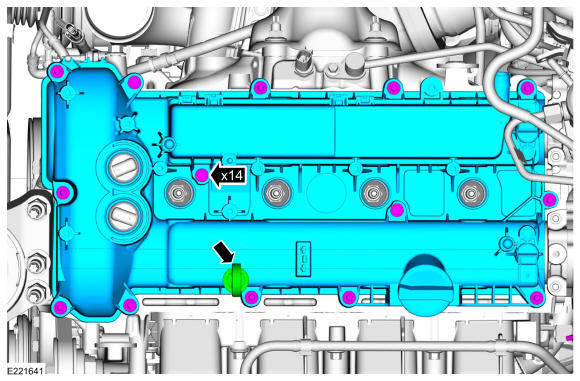

    GFD265900Courtesy of FORD MOTOR COMPANY

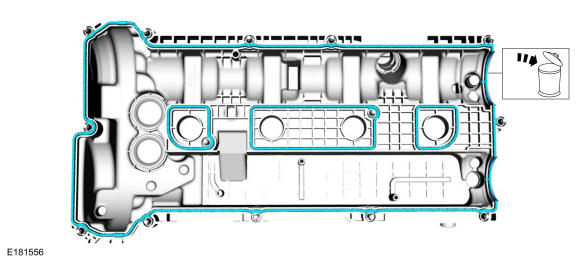

    GFD266428Courtesy of FORD MOTOR COMPANY

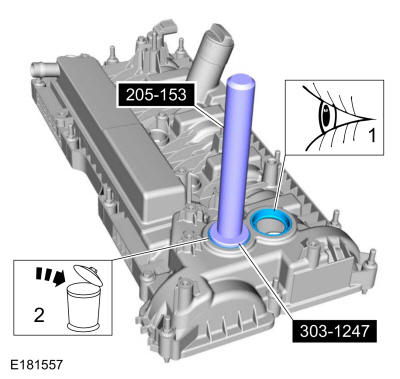

  4. NOTE: The gasket is to be reused unless damaged.

    Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD266429Courtesy of FORD MOTOR COMPANY

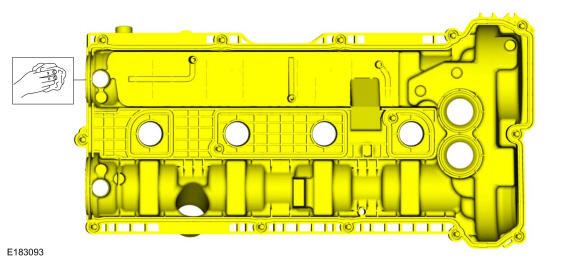

  5. NOTE: Make sure that the mating faces are clean and free of foreign material.
    GFD266430Courtesy of FORD MOTOR COMPANY

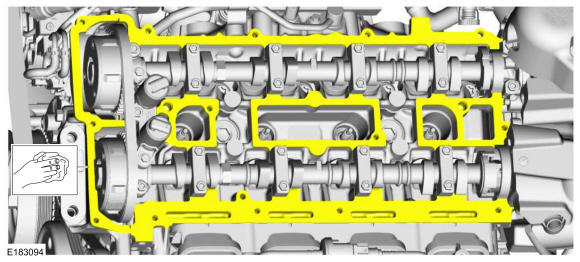

  6. NOTE: Make sure that the mating faces are clean and free of foreign material.
GFD266431Courtesy of FORD MOTOR COMPANY
