Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.

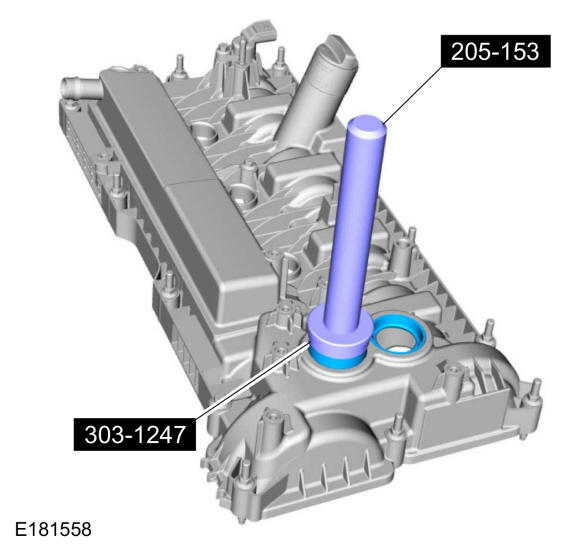

  2. NOTE: This step is only necessary when installing a new component.

    Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD266432Courtesy of FORD MOTOR COMPANY

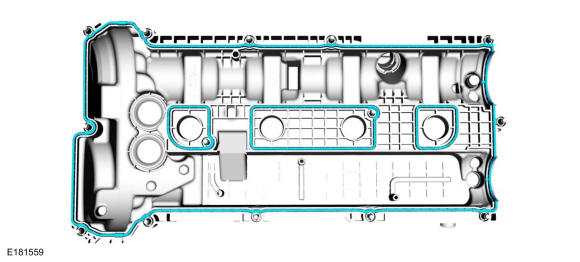

  3. NOTE: Make sure that a new component is installed.
    GFD266433Courtesy of FORD MOTOR COMPANY

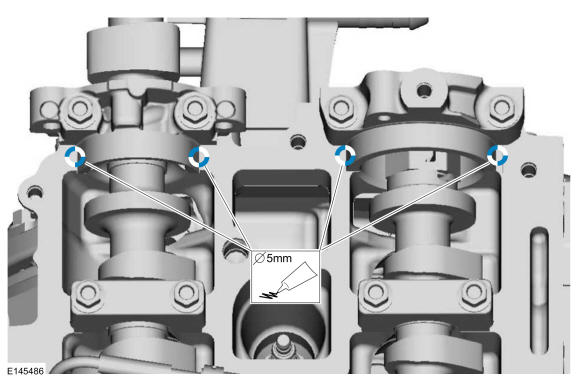

  4. NOTE: The component must be installed within 5 minutes of applying the sealant.

    Material

    : Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    GFD265903Courtesy of FORD MOTOR COMPANY

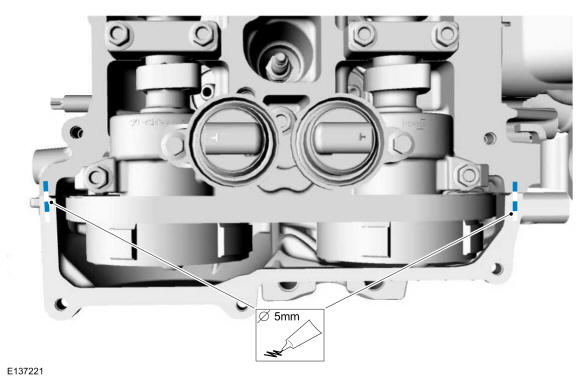

  5. NOTE: The component must be installed within 5 minutes of applying the sealant.

    Material

    : Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    GFD265904Courtesy of FORD MOTOR COMPANY
  6. NOTE: The gasket is to be reused unless damaged.

    Torque

    : 89 lb.in (10 Nm)

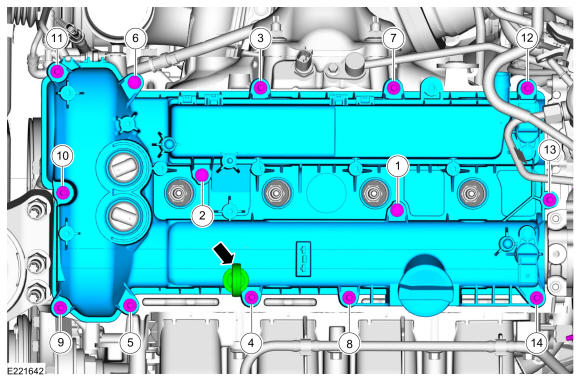

Fig 1: Valve Cover Bolt Tightening Sequence
GFD265905Courtesy of FORD MOTOR COMPANY
