Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the cowl panel grille. Refer to: Cowl Panel Grille .
  3. Install Special Service Tool: 303-F072 Support Bar, Engine.
    GFD266409Courtesy of FORD MOTOR COMPANY
  4. Remove the engine front cover. Refer to: Engine Front Cover  .
    1. Remove the CAC pipe nuts.
    2. Loosen the clamps and remove the CAC pipe.
    GFD265840Courtesy of FORD MOTOR COMPANY
  6. Detach the wiring harness retainers from oil pan stud bolts.
    GFD266410Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil pan drain bolt.

      Torque

      : 20 lb.ft (27 Nm)

    GFD266349Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD266350Courtesy of FORD MOTOR COMPANY
  9. NOTE: Make sure that no strain is placed on the refrigerant lines.

    • Disconnect the A/C compressor wiring harness electrical connector and retainer.

    • Remove the bolts and position and support the A/C compressor aside.

    GFD266411Courtesy of FORD MOTOR COMPANY
  10. Remove the bellhousing-to-oil pan bolts.
    GFD266403Courtesy of FORD MOTOR COMPANY
  11. Remove the oil pan-to-bellhousing stud bolt.
    GFD266404Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts, stud bolts and the oil pan.
    GFD266412Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the oil screen and pickup tube.
    GFD266413Courtesy of FORD MOTOR COMPANY

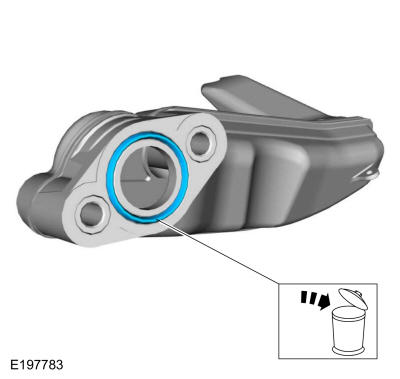

  14. Remove the oil screen and pickup tube O-ring seal and discard.
    GFD266414Courtesy of FORD MOTOR COMPANY

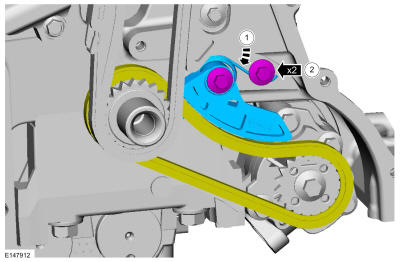

  15. WARNING: Take extra care when handling the compressed spring.

    1. Release the tension on the tensioner spring.
    2. Remove the shoulder bolts, tensioner and position the chain aside.

    GFD266415Courtesy of FORD MOTOR COMPANY
  16. Remove the bolt and oil pump sprocket.
    GFD265997Courtesy of FORD MOTOR COMPANY

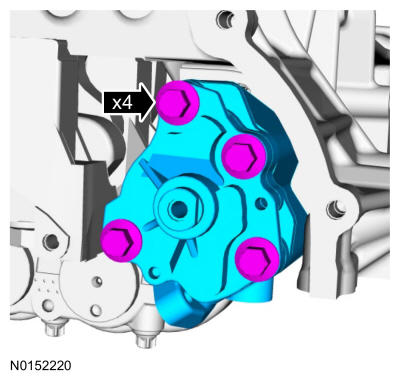

  17. Remove the bolts and the oil pump.
    GFD265998Courtesy of FORD MOTOR COMPANY

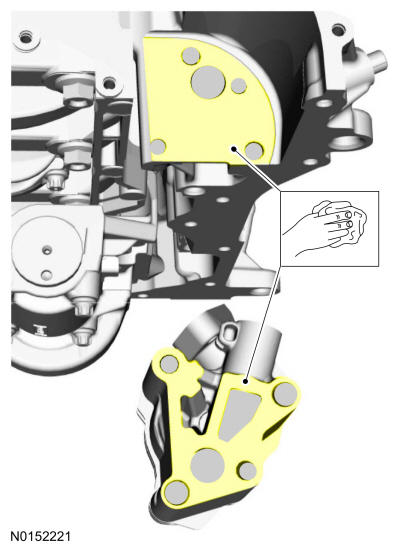

  18. Clean the mating surfaces of the oil pump.
    GFD266416Courtesy of FORD MOTOR COMPANY

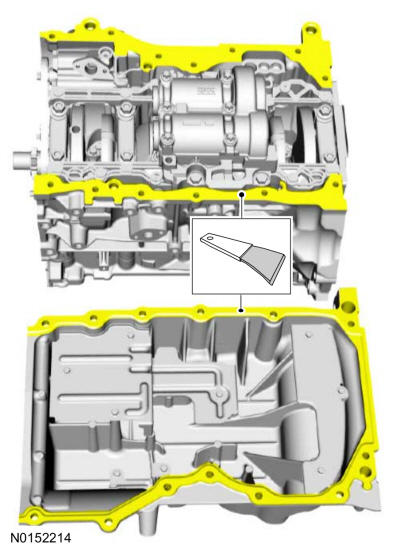

  19. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material

      : Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material

      : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

GFD266417Courtesy of FORD MOTOR COMPANY
