Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

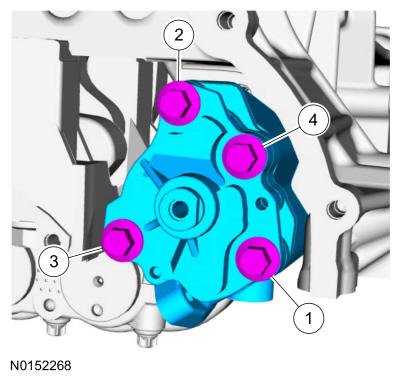

Install the oil pump and the bolts.
Torque

:Stage 1: 89 lb.in (10 Nm) Stage 2: 177 lb.in (20 Nm)

Fig 1: Oil Pump Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY

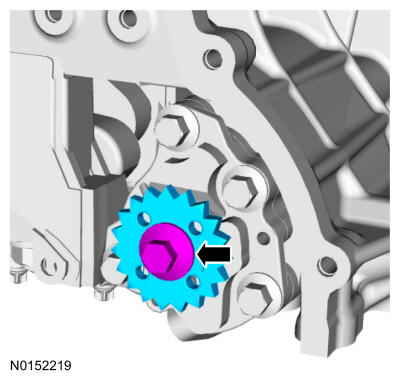

Install the oil pump sprocket and bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

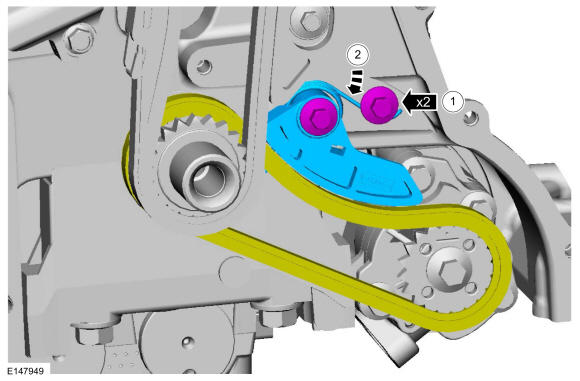

1. WARNING: Take extra care when handling the compressed spring.

  Install the oil pump drive chain, tensioner and the shoulder bolts.

  Torque

  : 89 lb.in (10 Nm)
2. Hook the tensioner spring around the shoulder bolt.
Courtesy of FORD MOTOR COMPANY

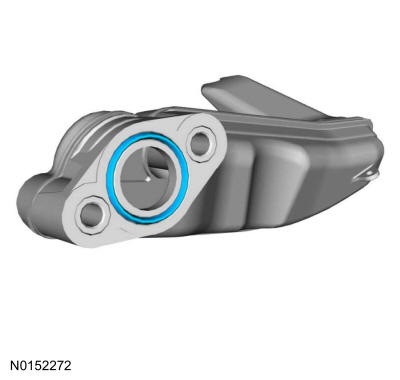

Install the oil screen and pickup tube O-ring seal.

Courtesy of FORD MOTOR COMPANY

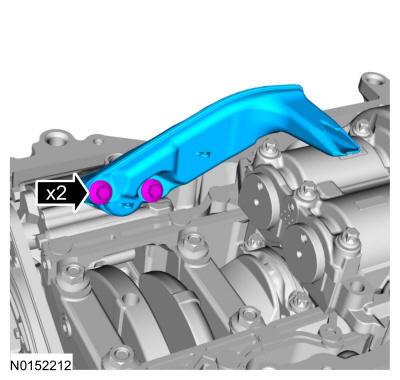

Install the oil screen and pickup tube and the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

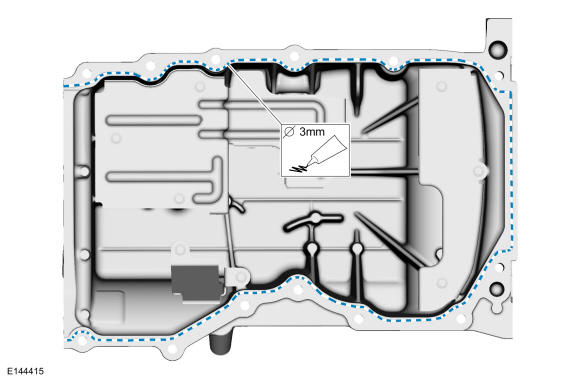

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan, bolts and stud bolts finger tight.

Courtesy of FORD MOTOR COMPANY

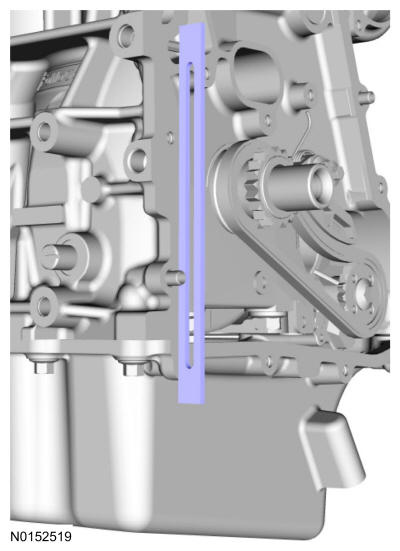

Align the front surface of the oil pan flush with the front surface of the engine block. Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

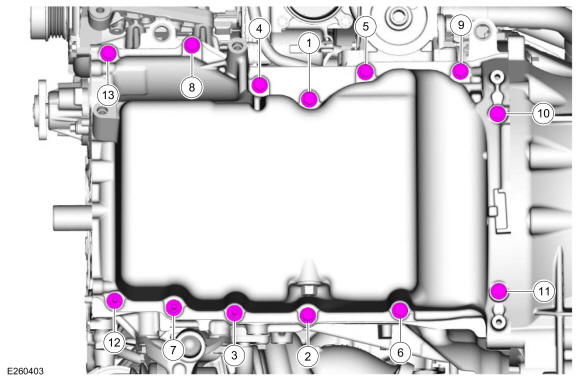

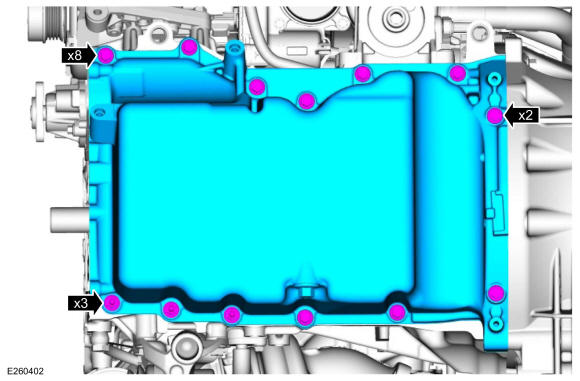

Tighten the bolts and stud bolts in sequence shown.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

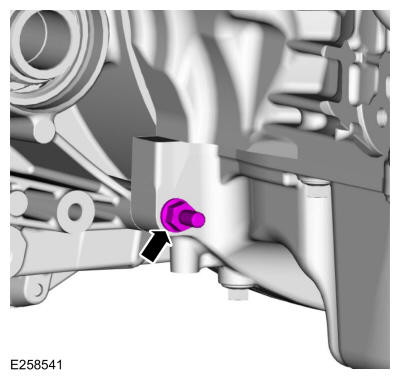

Install the oil pan-to-bellhousing stud bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

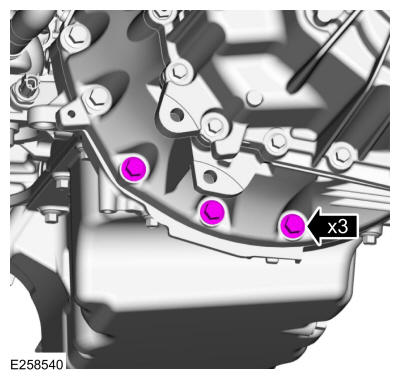

Install the oil pan bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

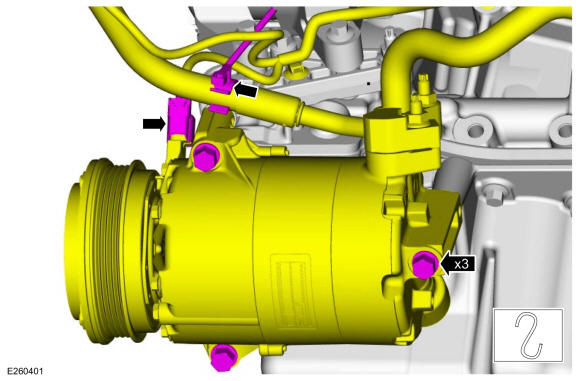

- Remove the support and position the A/C compressor and install the bolts.
  Torque

  : 18 lb.ft (25 Nm)
- Connect the A/C compressor wiring harness electrical connector and retainer.
Courtesy of FORD MOTOR COMPANY

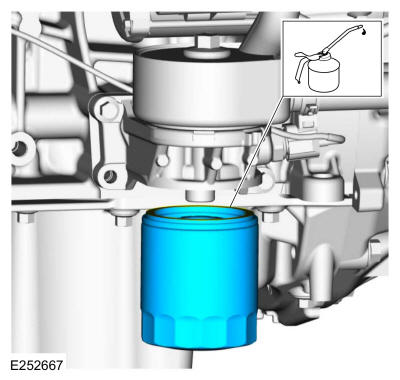

Lubricate the oil filter seal with clean engine oil and install.
Torque

:Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

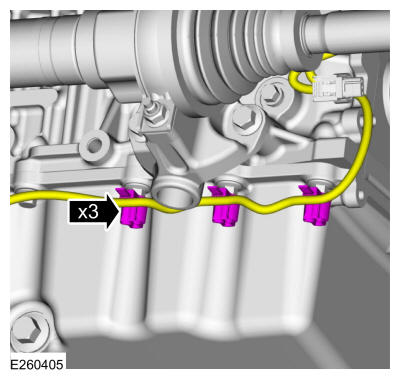

Attach the wiring harness retainers to oil pan stud bolts.

Courtesy of FORD MOTOR COMPANY

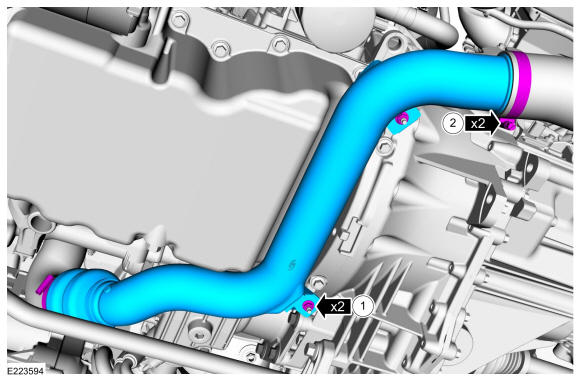

1. Install the CAC pipe and the nuts.
  Torque

  : 89 lb.in (10 Nm)
2. Tighten the CAC pipe clamps.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .

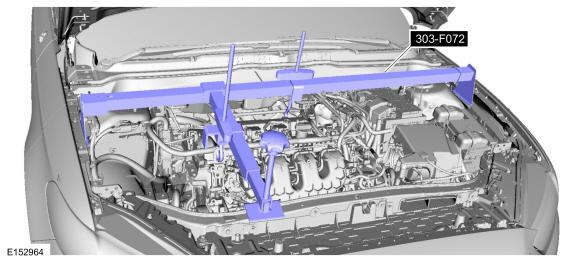

Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Install the cowl panel grille. Refer to: Cowl Panel Grille .

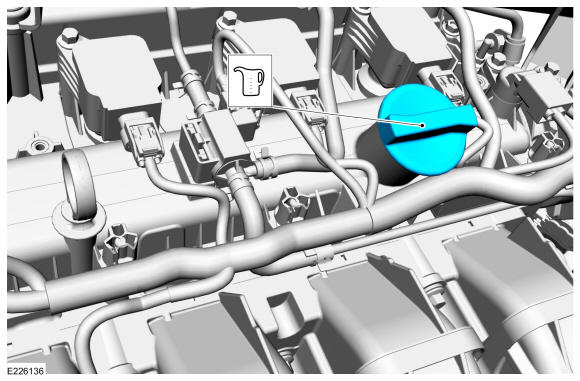

Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
