Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

    GFD264606Courtesy of FORD MOTOR COMPANY

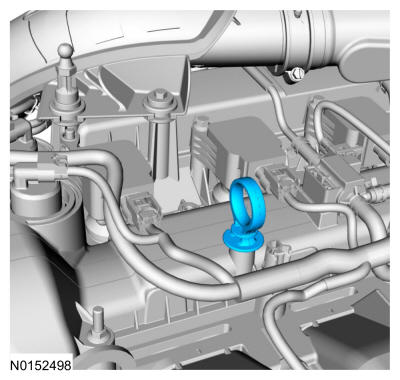

  3. Remove the oil level indicator.
    GFD266399Courtesy of FORD MOTOR COMPANY
  4. Remove the following items:

    1. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Remove the power transfer unit. Refer to: Power Transfer Unit .

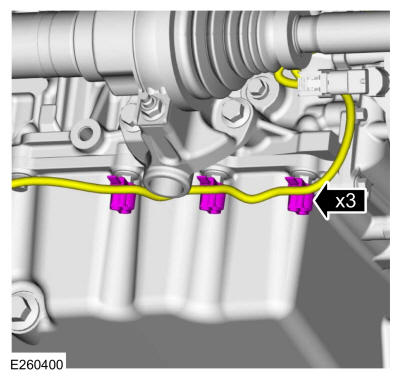

  5. Detach the wiring harness retainers from the oil pan stud bolts.
    GFD266400Courtesy of FORD MOTOR COMPANY
  6. NOTE: To prevent damage to the transmission, do not loosen the transmission-to-engine fasteners more than 5 mm (0.19 in).

    Loosen the upper bellhousing-to-engine bolts 5 mm (0.197 in).

    GFD265866Courtesy of FORD MOTOR COMPANY
    • Detach the wiring harness retainers.

    • Disconnect the wiring harness electrical connector.

    • Remove the nuts and the bracket.

    GFD265938Courtesy of FORD MOTOR COMPANY
  8. Remove the stud bolts and position and support the starter motor aside.
    GFD265868Courtesy of FORD MOTOR COMPANY
    • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment

    • Install the oil pan drain bolt.

      Torque

      : 20 lb.ft (27 Nm)

    GFD266349Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
    GFD266350Courtesy of FORD MOTOR COMPANY

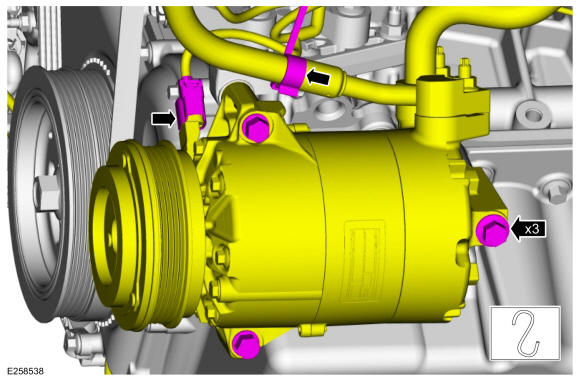

    • NOTE: Make sure that no strain is placed on the refrigerant lines.

      Disconnect the A/C compressor wiring harness electrical connector and retainer.

    • Remove the bolts and position and support the A/C compressor aside.

    GFD266401Courtesy of FORD MOTOR COMPANY
  12. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).

    Loosen the engine-to-bellhousing bolts 5 mm (0.197 in).

    GFD265871Courtesy of FORD MOTOR COMPANY

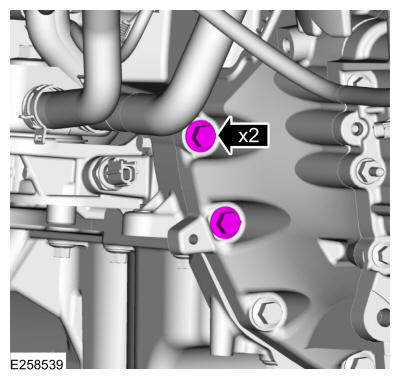

  13. NOTE: To prevent damage to the transmission, do not loosen the engine-to-transmission fasteners more than 5 mm (0.19 in).

    Loosen the bellhousing-to-engine bolts 5 mm (0.197 in).

    GFD266402Courtesy of FORD MOTOR COMPANY
  14. Remove the bellhousing-to-oil pan bolts.
    GFD266403Courtesy of FORD MOTOR COMPANY
  15. Remove the oil pan-to-bellhousing stud bolt.
    GFD266404Courtesy of FORD MOTOR COMPANY

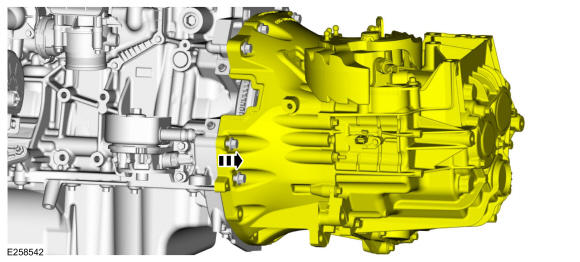

  16. Separate the engine and transmission 5 mm (0.197 in).
    GFD266405Courtesy of FORD MOTOR COMPANY

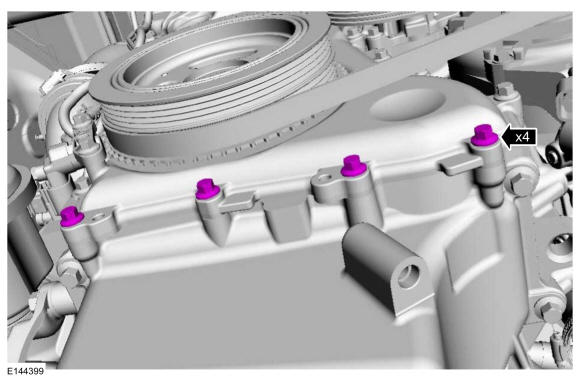

  17. Remove the engine front cover-to-oil pan bolts.
    GFD265874Courtesy of FORD MOTOR COMPANY

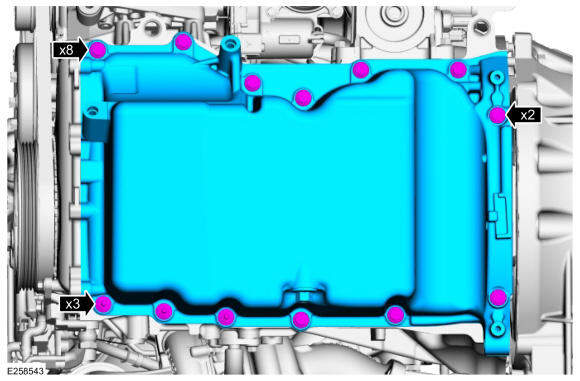

  18. Remove the bolts, stud bolts and the oil pan.
    GFD266406Courtesy of FORD MOTOR COMPANY

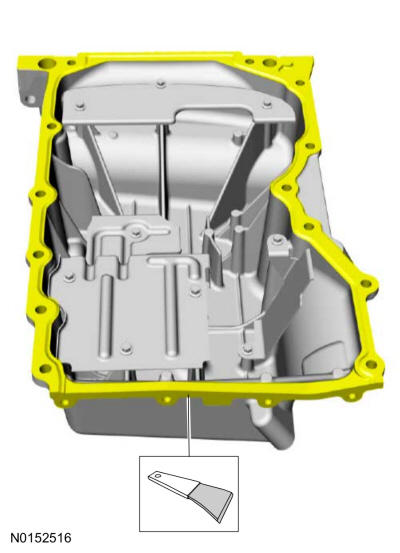

  19. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 RPM, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.

    • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

      Material

      : Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material

      : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material

      : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

    GFD265876Courtesy of FORD MOTOR COMPANY

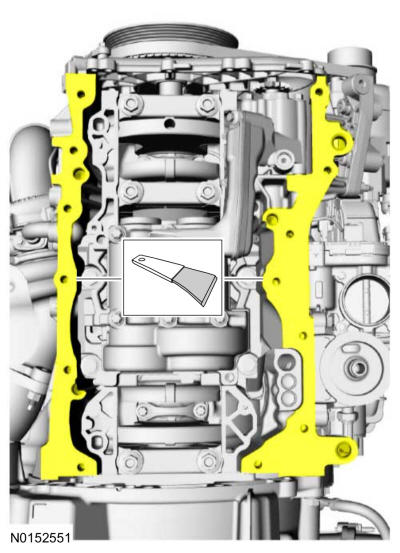

  20. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD265877Courtesy of FORD MOTOR COMPANY

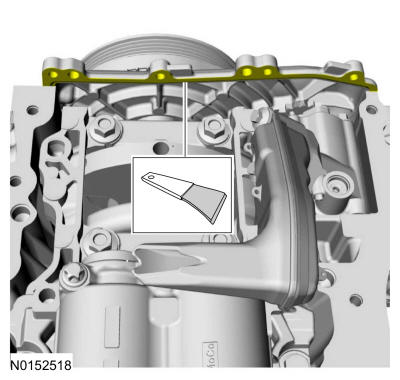

  21. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

    Make sure that the mating faces of the engine front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material

    : Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

GFD265878Courtesy of FORD MOTOR COMPANY
