Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

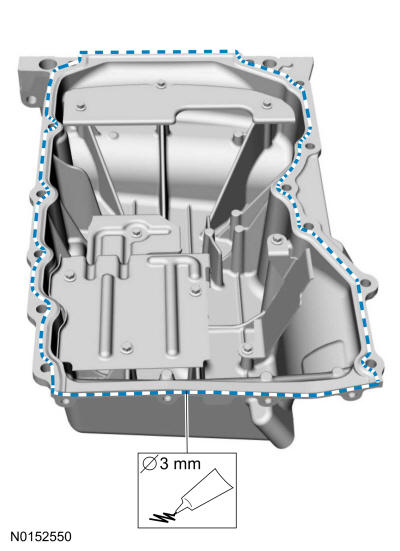

Apply a 3 mm bead of silicone sealant.

Material

: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Material

: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover-to-oil pan fasteners must be tightened first to align the front surface of the oil pan flush with the front surface of the engine block.

Install the engine front cover-to-oil pan bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

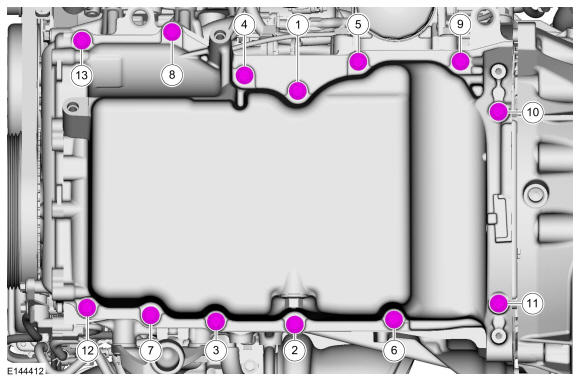

Tighten the bolts in sequence shown.
Torque

: 18 lb.ft (25 Nm)

Fig 1: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

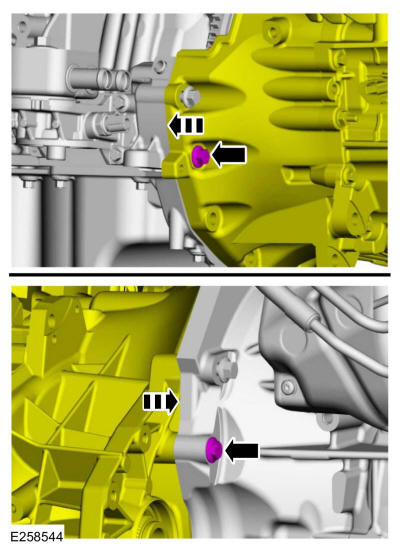

Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transmission and engine together.

Courtesy of FORD MOTOR COMPANY
Install the oil pan-to-bellhousing bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bellhousing-to-oil pan bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the transmission-to-engine bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the bellhousing-to-engine bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
- Remove the support and position the A/C compressor and install the bolts.
  Torque

  : 18 lb.ft (25 Nm)
- Connect the A/C compressor wiring harness electrical connector and retainer.
Courtesy of FORD MOTOR COMPANY
Tighten the transmission-to-engine bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the support and position the starter motor and install the stud bolts.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the bracket and the nuts.
  Torque

  : 89 lb.in (10 Nm)
- Connect the wiring harness electrical connector.
- Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Lubricate the oil filter seal with clean engine oil and install.
Torque

:Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

Courtesy of FORD MOTOR COMPANY
Attach the wiring harness retainers to the oil pan stud bolts.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the power transfer unit. Refer to: Power Transfer Unit .
2. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.
1. Lubricate each grommet with silicone grease.
  Material

  : Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

Courtesy of FORD MOTOR COMPANY
