Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

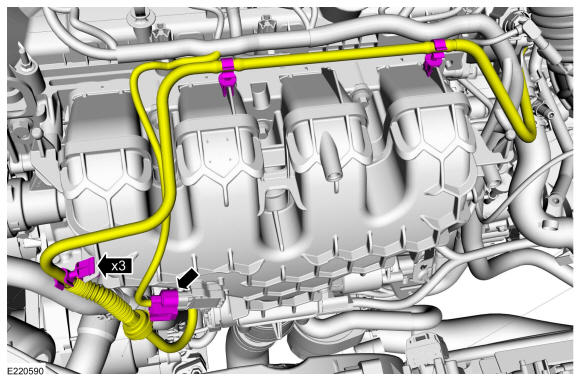

Courtesy of FORD MOTOR COMPANY

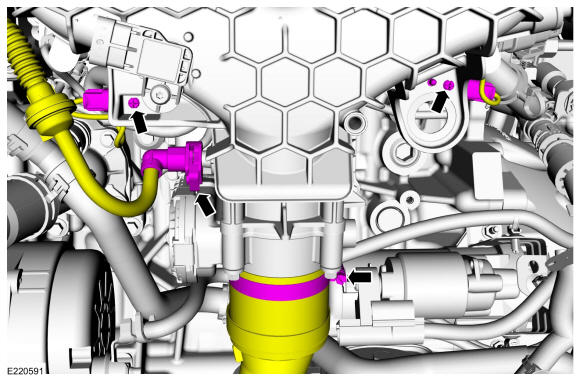

Courtesy of FORD MOTOR COMPANY

Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

NOTE: The gaskets are to be reused unless damaged.

Refer to: Quick Release Coupling .

Torque

: 177 lb.in (20 Nm)

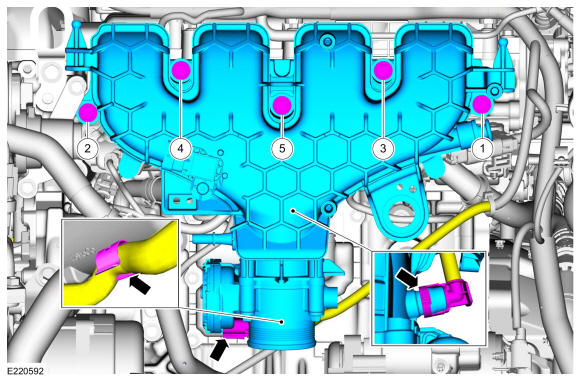

Fig 1: Intake Manifold Bolt Loosening Sequence

Courtesy of FORD MOTOR COMPANY

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

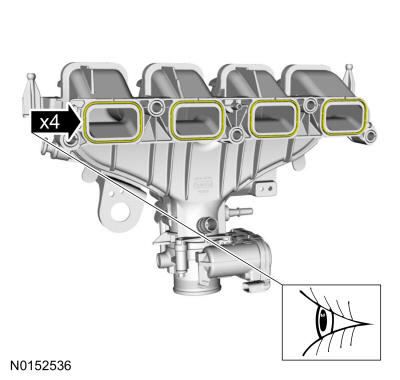

Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

Courtesy of FORD MOTOR COMPANY
