Removal And Installation: Flywheel: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that new bolts are installed.

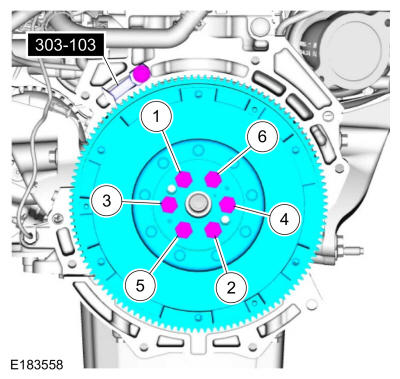

Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
Torque
:Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)
- Refer to: CLUTCH DISC AND PRESSURE PLATE - 6-SPEED MANUAL TRANSMISSION - MMT6
- After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
