Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

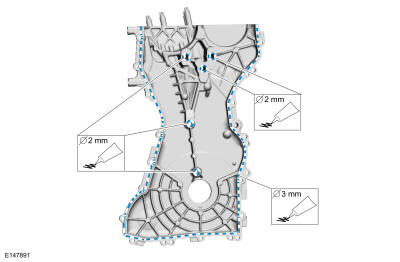

  1. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

    Apply a 2 mm (0.078 in) and 3 mm (0.118 in) bead of silicone sealant as location shown.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD266372Courtesy of FORD MOTOR COMPANY
  2. NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep.

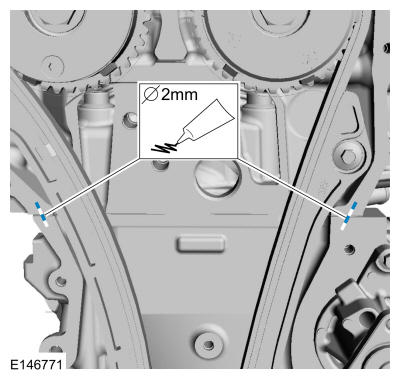

    Apply beads of silicone gasket and sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.

    Material

    : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Material

    : Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    GFD266373Courtesy of FORD MOTOR COMPANY

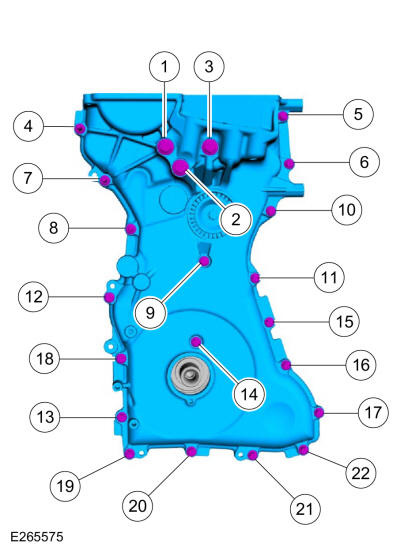

  3. Install the engine front cover and the fasteners and tighten in the sequence shown.

    Torque

    :Bolts 1 - 3: 35 lb.ft (48 Nm) Bolts 4 - 22: 89 lb.in (10 Nm)

    Fig 1: Engine Front Cover Bolt Tightening Sequence
    GFD266374Courtesy of FORD MOTOR COMPANY

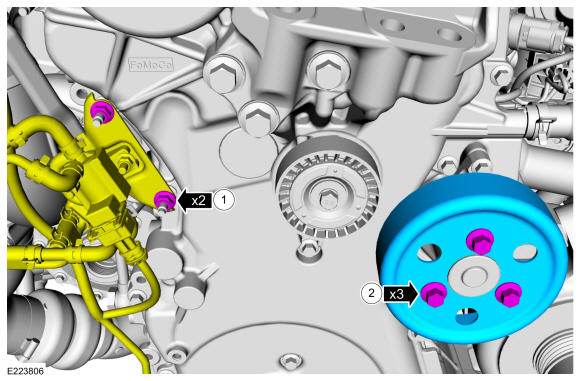

    1. Position the turbocharger vacuum control valve and install the nuts.

      Torque

      : 89 lb.in (10 Nm)

    2. Install the coolant pump pulley and the bolts.

      Torque

      : 177 lb.in (20 Nm)

    GFD266369Courtesy of FORD MOTOR COMPANY

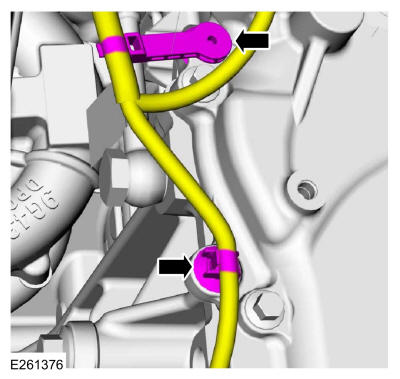

  5. Attach the wiring harness retainers.
    GFD266368Courtesy of FORD MOTOR COMPANY
  6. Install the engine mount. Refer to: Engine Mount  .

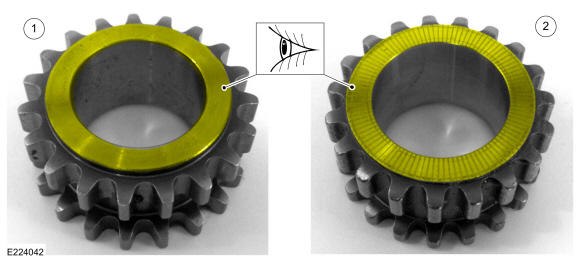

    1. Flat faced sprocket - requires a friction washer.
    2. Laser etched sprocket - does

      NOT  require a friction washer.

    GFD266375Courtesy of FORD MOTOR COMPANY

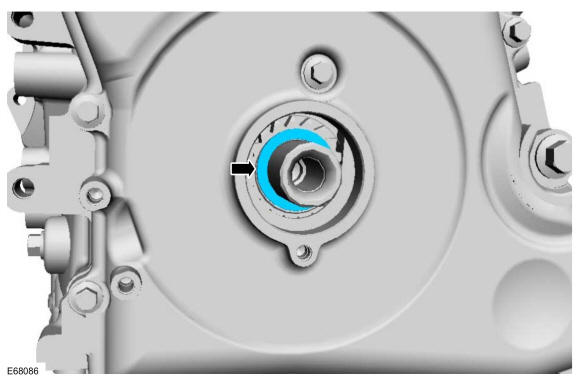

  8. NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.
    GFD266376Courtesy of FORD MOTOR COMPANY

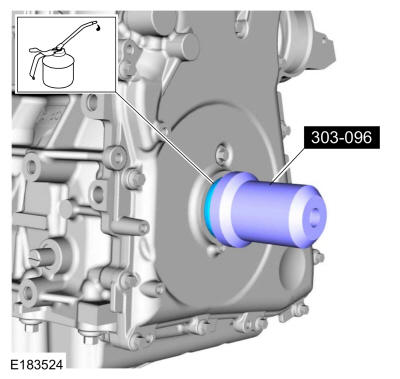

  9. NOTE: Make sure a new component is installed.
    NOTE: Component must be lubricated with clean engine oil.

    Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    GFD266377Courtesy of FORD MOTOR COMPANY

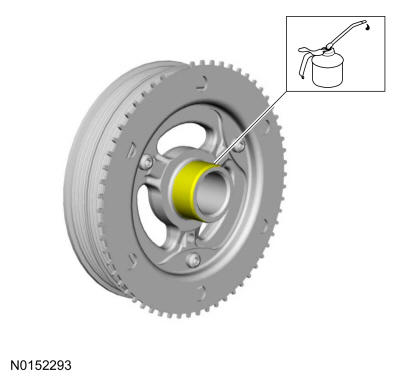

  10. Lubricate the crankshaft pulley with clean engine oil.

    Material

    : Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD266378Courtesy of FORD MOTOR COMPANY

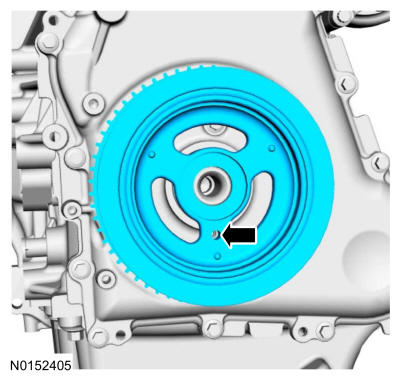

  11. Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.
    GFD266379Courtesy of FORD MOTOR COMPANY

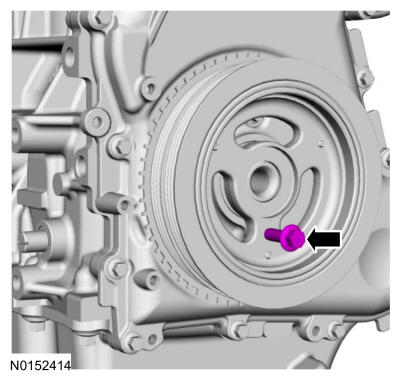

  12. NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

    Install an M6 bolt.

    GFD266380Courtesy of FORD MOTOR COMPANY

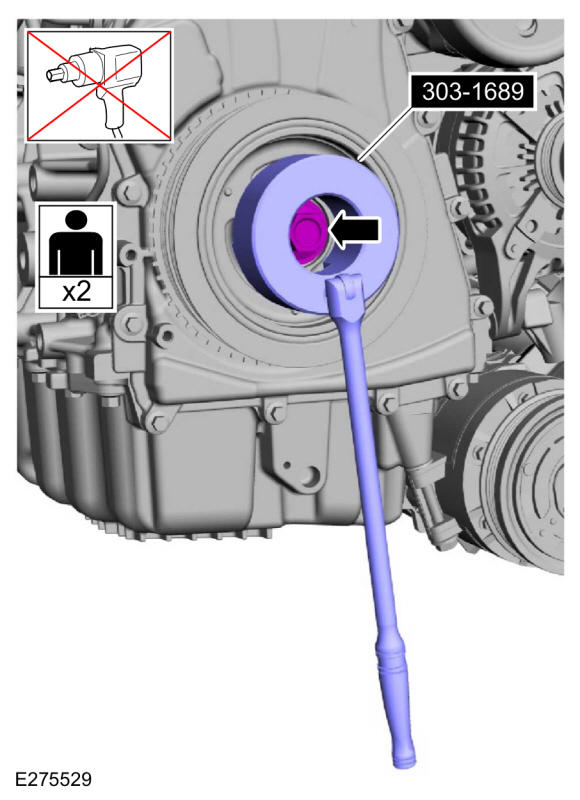

  13. NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

    Using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

    Torque

    :Stage 1: 74 lb.ft (100 Nm) Stage 2: 180°

    GFD266381Courtesy of FORD MOTOR COMPANY

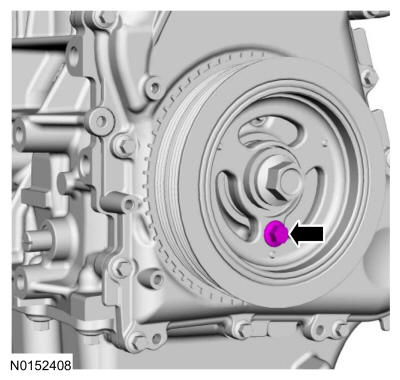

  14. Remove the M6 bolt.
    GFD266382Courtesy of FORD MOTOR COMPANY

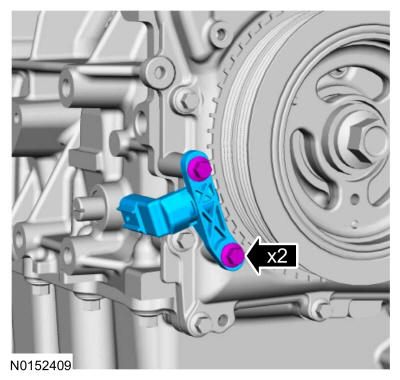

  15. NOTE: Do not tighten the CKP sensor bolts at this time.

    Install the CKP sensor and the bolts.

    GFD266383Courtesy of FORD MOTOR COMPANY

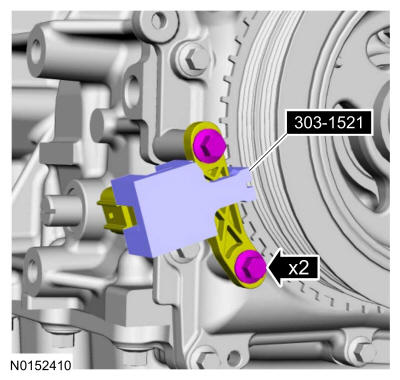

  16. Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

    Torque

    : 62 lb.in (7 Nm)

    GFD266384Courtesy of FORD MOTOR COMPANY

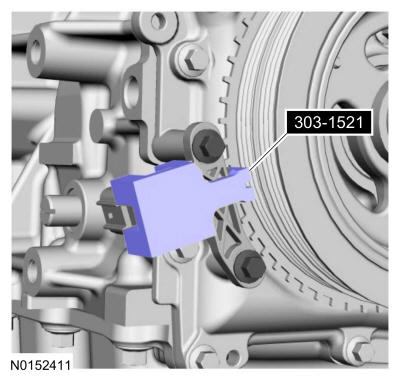

  17. Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
    GFD266385Courtesy of FORD MOTOR COMPANY

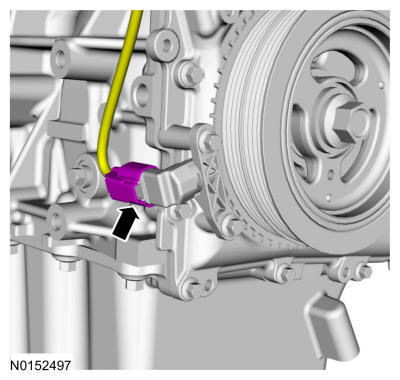

  18. Connect the CKP sensor electrical connector.
    GFD266386Courtesy of FORD MOTOR COMPANY

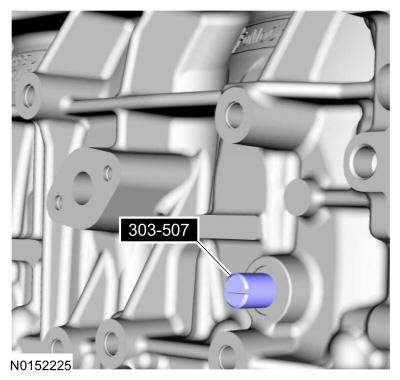

  19. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
    GFD266387Courtesy of FORD MOTOR COMPANY

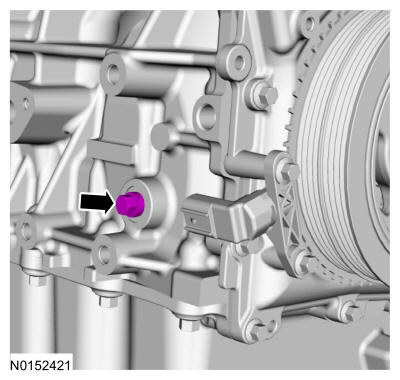

  20. Install the engine plug bolt.

    Torque

    : 177 lb.in (20 Nm)

    GFD266388Courtesy of FORD MOTOR COMPANY

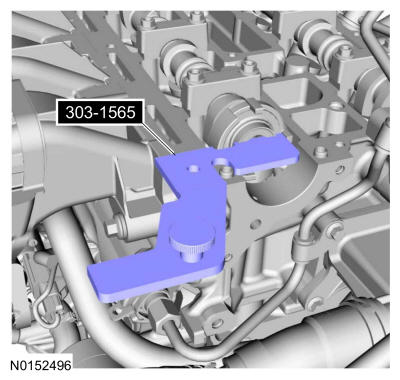

  21. Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.
    GFD266364Courtesy of FORD MOTOR COMPANY

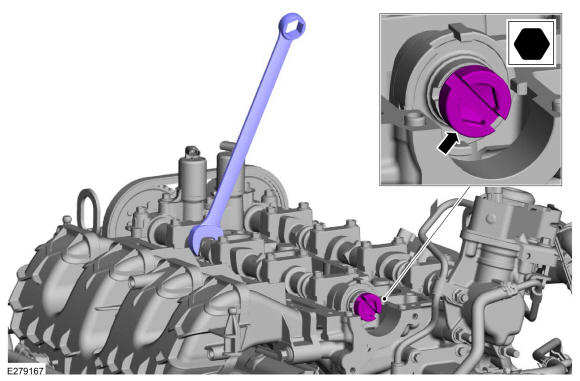

  22. Using a wrench on the flats of the intake camshaft to prevent cam rotation, install the brake vacuum pump adapter.

    Torque

    : 46 lb.ft (63 Nm)

    GFD266358Courtesy of FORD MOTOR COMPANY

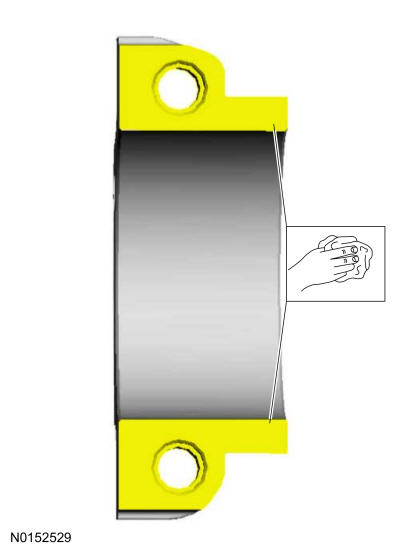

  23. Clean the rear intake camshaft cap.
    GFD266389Courtesy of FORD MOTOR COMPANY
  24. NOTE: The intake camshaft rear bearing cap must be secured within 10 minutes of gasket maker application. If the bearing cap is not secured within 10 minutes, the gasket maker must be removed.

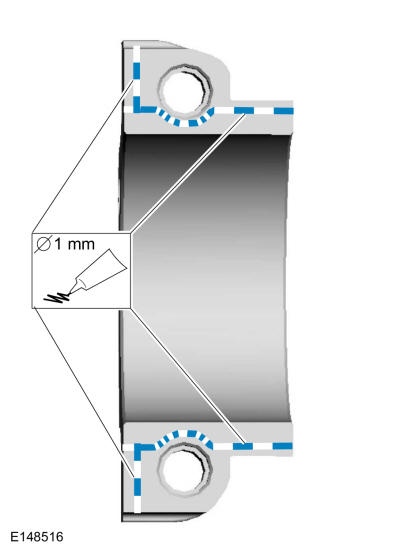

    Apply 1 mm (0.039 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    GFD266390Courtesy of FORD MOTOR COMPANY

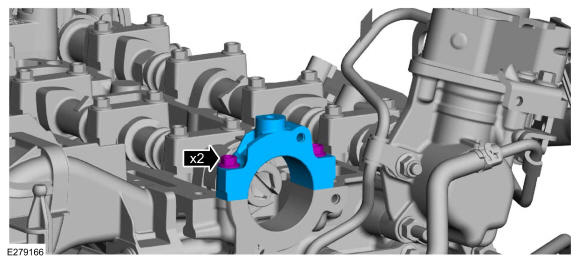

  25. NOTE: Wipe off any excess gasket maker from the vacuum pump sealing surface of the cylinder head and camshaft cap.

    Install the rear intake camshaft cap and the bolts.

    Torque

    :Stage 1: 62 lb.in (7 Nm) Stage 2: 142 lb.in (16 Nm)

    GFD266357Courtesy of FORD MOTOR COMPANY
  26. Install the following items:

    1. Refer to: Valve Cover  .
    2. Refer to: Brake Vacuum Pump - 2.3L EcoBoost (257kW/350PS) - MI4 .
    3. Refer to: Accessory Drive Belt Tensioner .
    4. Refer to: Accessory Drive Belt .
    5. RHF Refer to: Fender Splash Shield - RS .

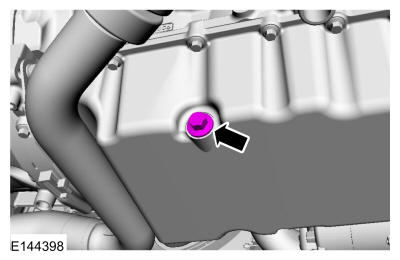

  27. NOTE: Be prepared to collect escaping fluid.

    Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque

    : 19 lb.ft (26 Nm)

    GFD266391Courtesy of FORD MOTOR COMPANY

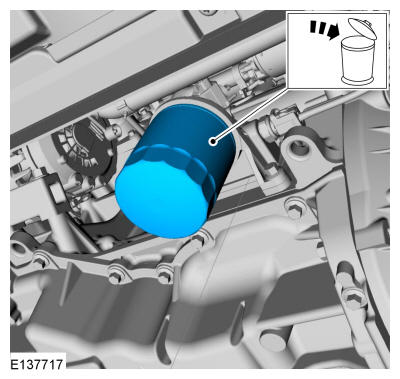

  28. NOTE: Be prepared to collect escaping fluid.

    Remove and discard the engine oil filter. Use the General Equipment: Strap Wrench. Use the General Equipment: Oil Drain Equipment

    GFD266392Courtesy of FORD MOTOR COMPANY

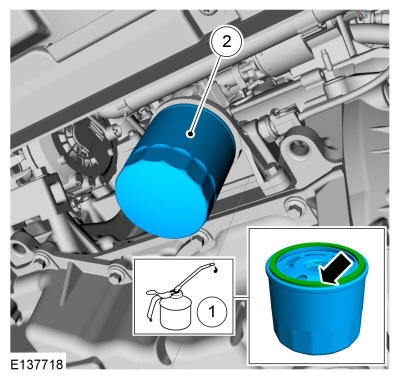

  29. Lubricate the O-ring seal and install the new engine oil filter.

    Torque

    : 133 lb.in (15 Nm)

    GFD266393Courtesy of FORD MOTOR COMPANY

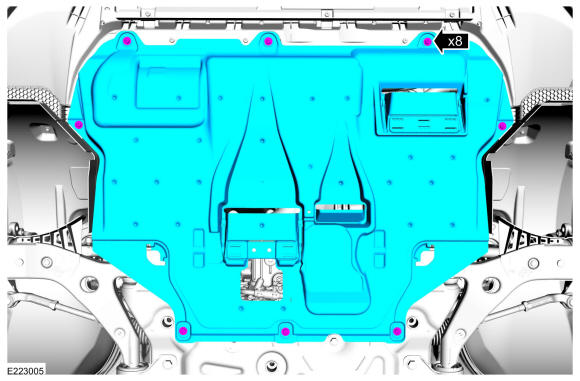

  30. Remove the retainers and remove the underbody shield.
    GFD266356Courtesy of FORD MOTOR COMPANY

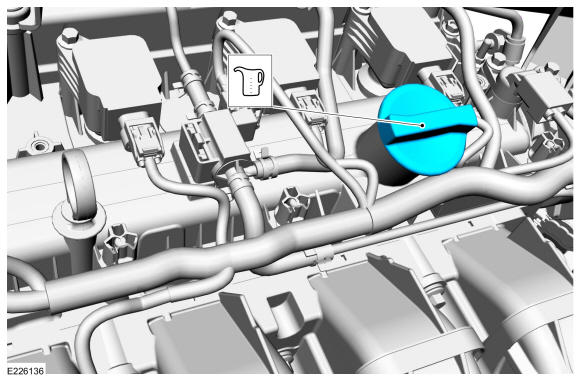

  31. NOTE: Make sure that fluid level is to the MAX mark.

    Fill the engine with clean engine oil. Refer to: Specifications  .

    GFD266394Courtesy of FORD MOTOR COMPANY
  32. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
