Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.

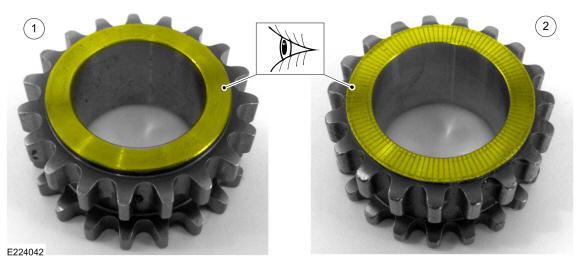

1. Flat faced sprocket - requires a friction washer.
2. Laser etched sprocket - does
  NOT require a friction washer.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure a new component is installed.

NOTE: Component must be lubricated with clean engine oil.

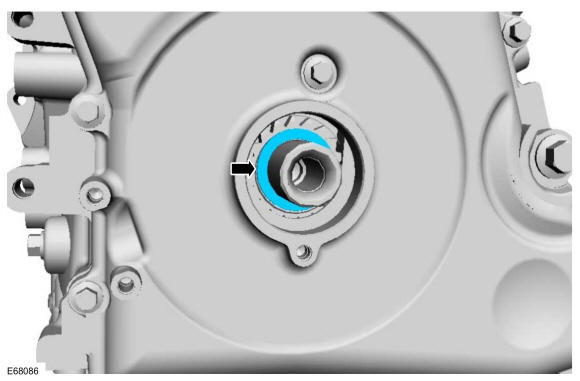

Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Courtesy of FORD MOTOR COMPANY
Refer to: Crankshaft Pulley .
