Section 3 (Engine - 2.3L ECOBOOST (257KW/350PS) - Mi4): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	300-OTC1585AE Powertrain Lift
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer

Materials

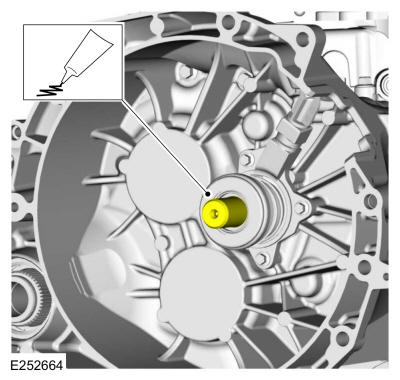

1. Apply a thin coating of grease on the input shaft.

   Material

   : Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: This step requires the aid of another technician.

   Install the transmission and the upper transmission bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

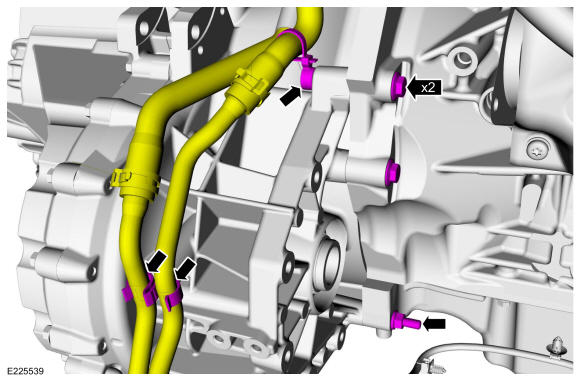

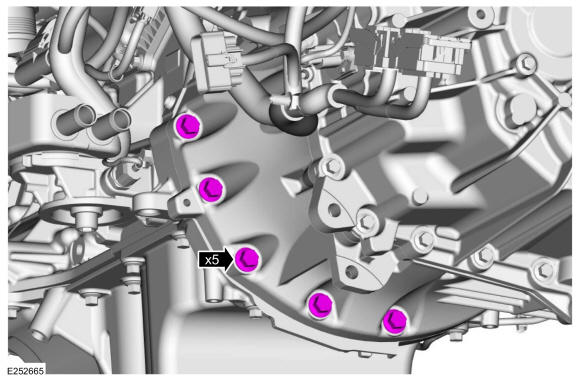

3. Install the lower transmission bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

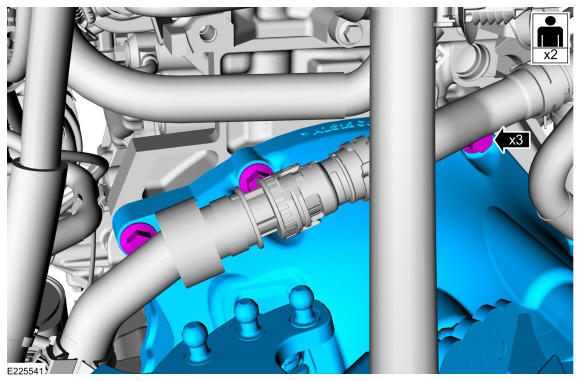

4. • Install the two bottom bolts and tighten the bolts.

     Torque

     : 35 lb.ft (48 Nm)

   • Attach the coolant hose retainers.

   Courtesy of FORD MOTOR COMPANY

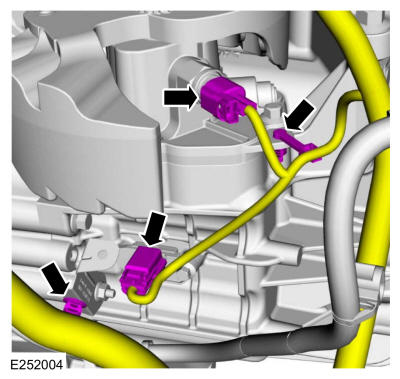

5. Connect the wiring harness electrical connectors and retainers.

   Courtesy of FORD MOTOR COMPANY

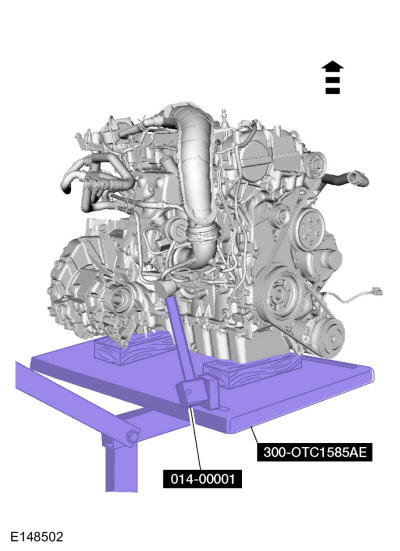

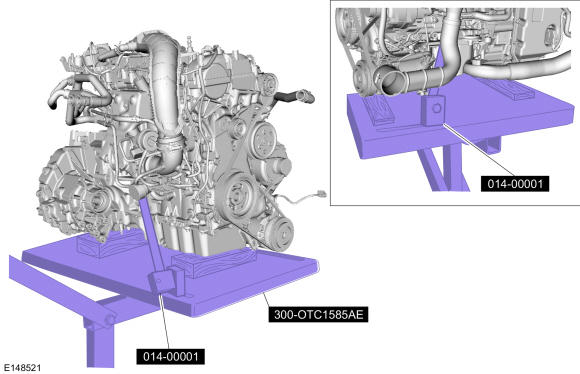

6. Install the engine on the powertrain table and the special tools. Install Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

7. Remove the engine lifting equipment. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

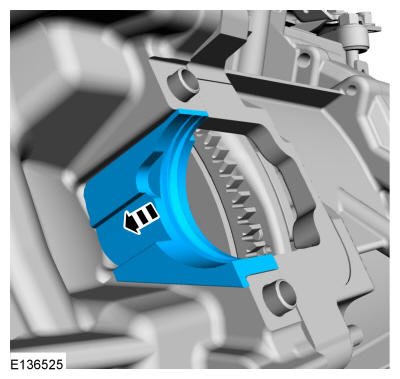

8. Install the stater motor isolator.

   Courtesy of FORD MOTOR COMPANY

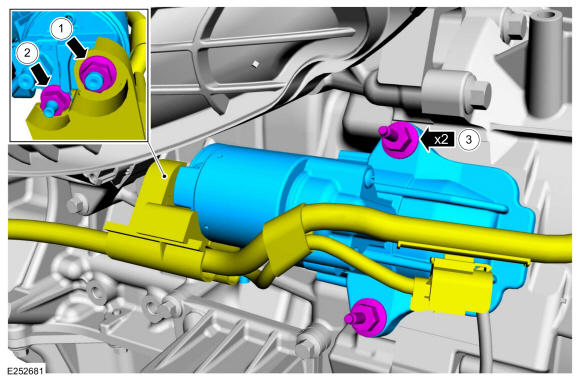

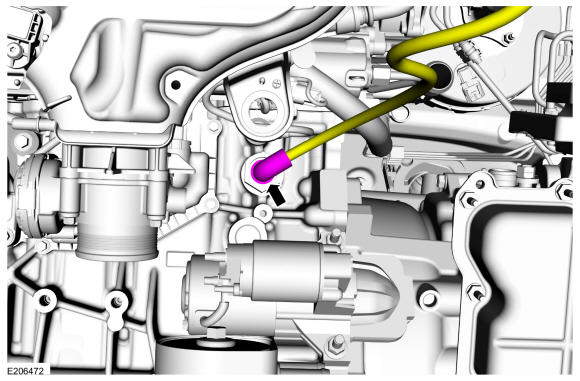

9. 1. Connect the battery positive cable housing to the starter motor and install the starter motor battery positive cable retaining nut.

      Torque

      : 159 lb.in (18 Nm)

   2. Install the starter motor control wire nut.

      Torque

      : 106 lb.in (12 Nm)

   3. Position the starter motor and install the stud bolts.

      Torque

      : 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

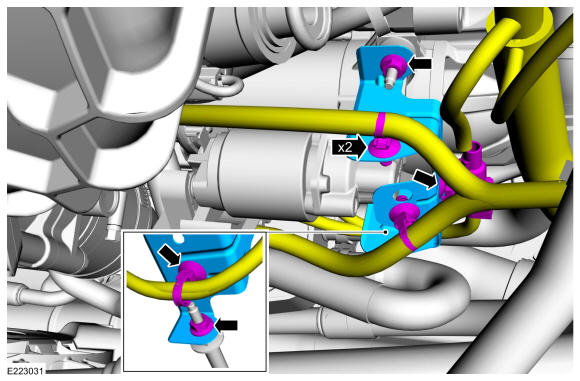

10. • Install the bracket and the nuts.

      Torque

      : 89 lb.in (10 Nm)

    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Make sure that no components catch.
    NOTE: This step requires the aid of another technician.

    Using the powertrain table, adjustable mounting arm and install the engine and transmission assembly.

    Courtesy of FORD MOTOR COMPANY

12. Raise the engine and transmission assembly.

    Courtesy of FORD MOTOR COMPANY

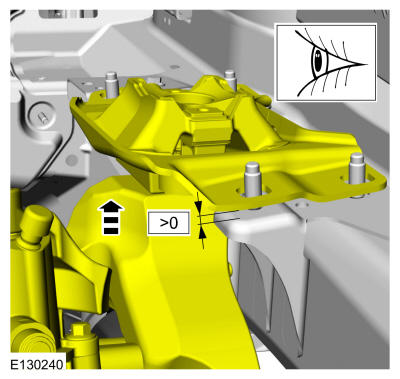

13. Install the transmission support insulator and the bolt.

    Torque

    : 109 lb.ft (148 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Tighten the engine mount studs.

    Torque

    : 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

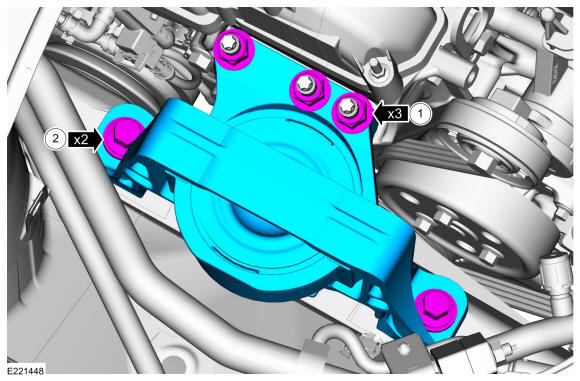

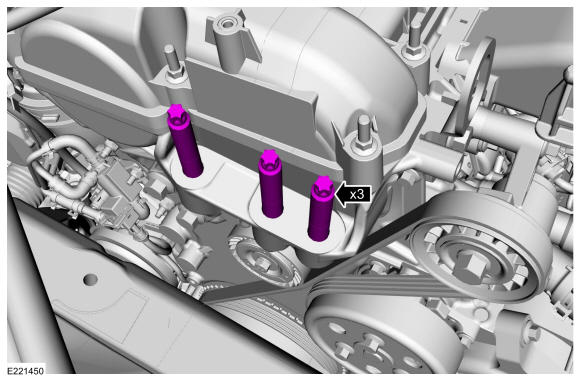

15. 1. Install the engine mount and the nuts.

       Torque

       : 59 lb.ft (80 Nm)

    2. NOTE: Only tighten the bolts finger tight at this stage.

       Install the engine mount bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

16. Remove Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

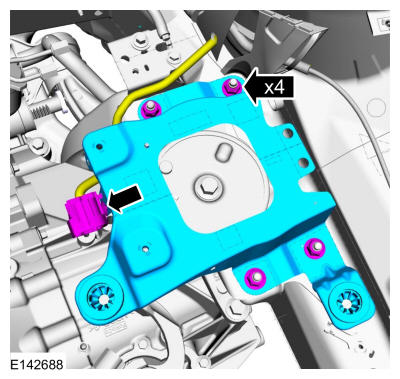

17. • Install the battery tray support bracket and the nuts.

      Torque

      : 35 lb.ft (48 Nm)

    • Attach the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

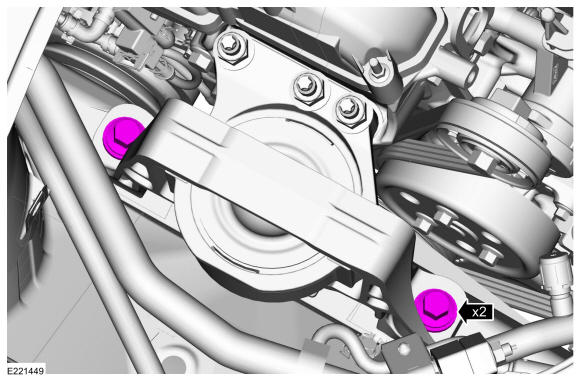

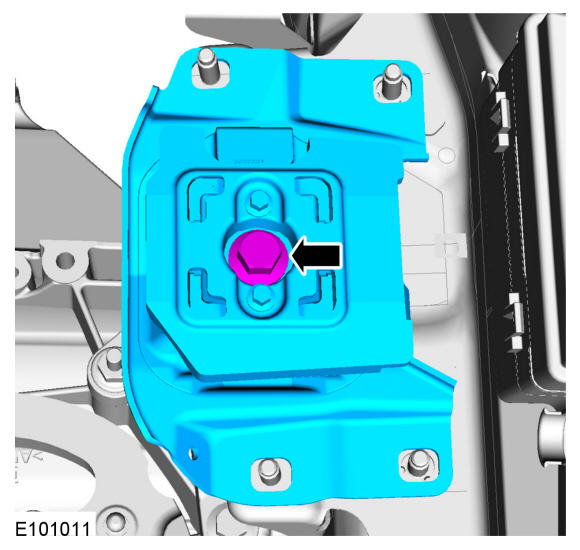

18. Tighten the engine mount bolts.

    Torque

    : 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

    Courtesy of FORD MOTOR COMPANY

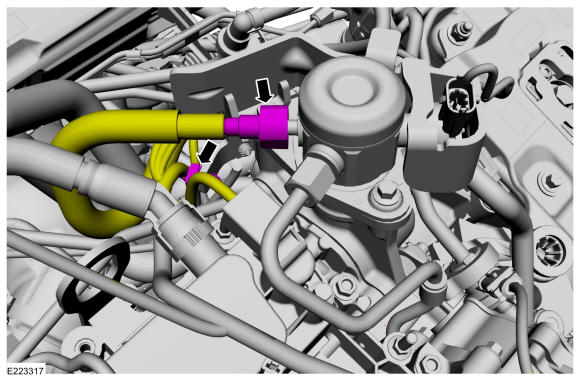

    Connect the high-pressure fuel pump fuel feed tube quick release coupling and retainer.

    Courtesy of FORD MOTOR COMPANY

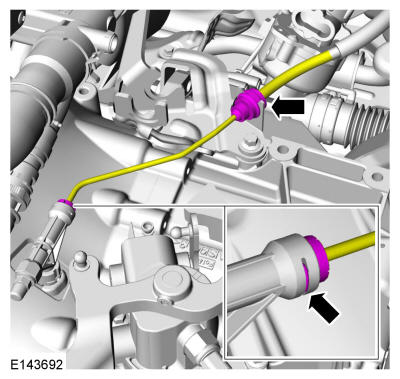

20. Connect the slave cylinder hydraulic tube to the slave cylinder and bracket.

    Courtesy of FORD MOTOR COMPANY

21. NOTE: Gearshift cables must not be kinked or bent.

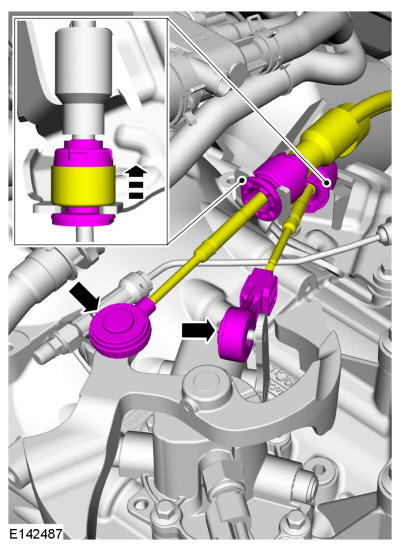

    Connect the shift cables to the transmission.

    Courtesy of FORD MOTOR COMPANY

22. Install the following items:
    1. Install the power transfer unit. Refer to: Power Transfer Unit .
    2. Install the LH halfshaft. Refer to: Front Halfshaft LH .

23. Connect the MAPT sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

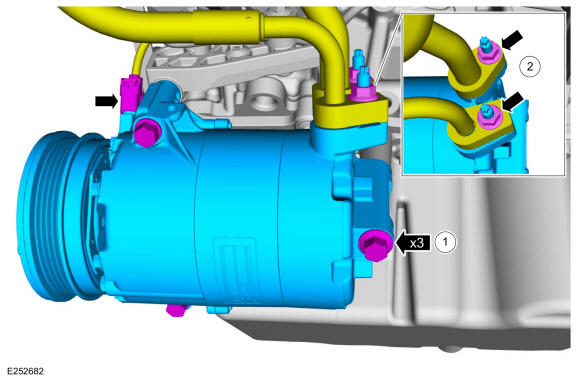

24. 1. Install the A/C compressor and connect the A/C compressor electrical connector.

       Torque

       : 18 lb.ft (25 Nm)

    2. NOTE: Install new O-ring seals and gasket seals.

       Position the A/C lines and install the nuts.

       Torque

       : 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

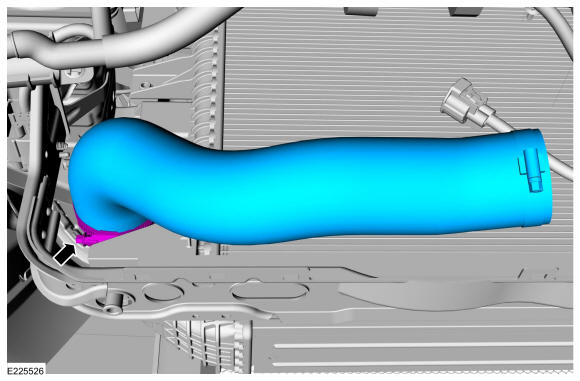

25. Install the CAC pipe and tighten the clamp.

    Torque

    : 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

26. NOTE: Make sure that a new component is installed.
    NOTE: Component must be lubricated with clean engine oil.

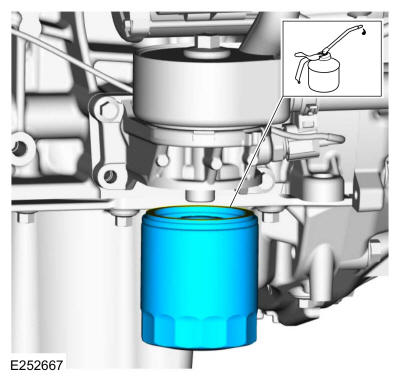

    Install the engine oil filter. Refer to: Specifications  .

    Torque

    :Stage 1: 71 lb.in (8 Nm) Stage 2: 180°

    Courtesy of FORD MOTOR COMPANY

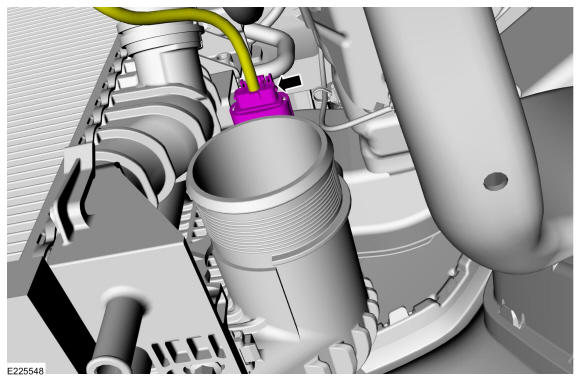

27. Connect the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

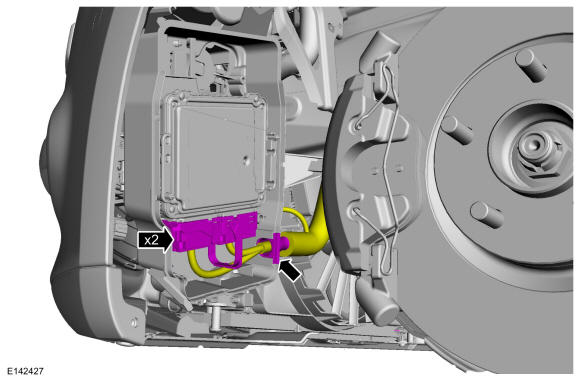

28. Connect the PCM electrical connectors and retainer.

    Courtesy of FORD MOTOR COMPANY

    Vehicles with PCM security shield

29. Install the PCM security shield and tighten the shear bolt until the head is sheared off.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without PCM security shield

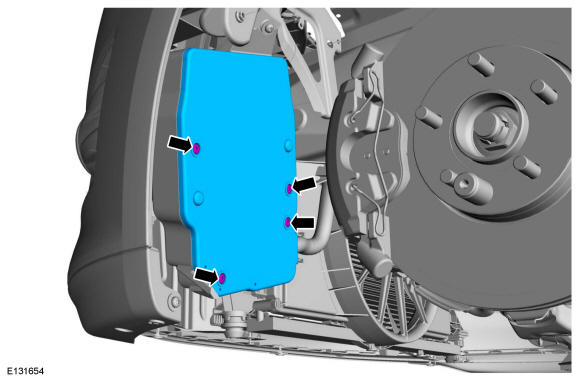

30. Install the PCM cover and the screws.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

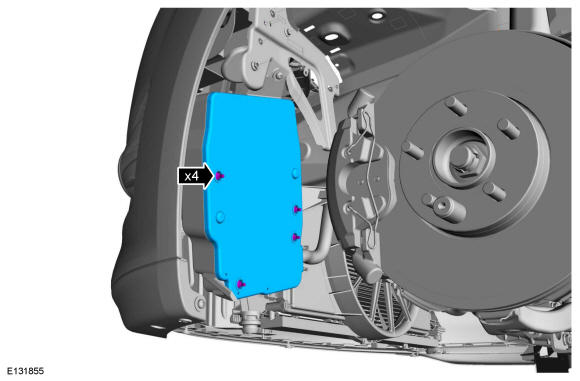

31. Install the LH fender splash shield. Refer to: Fender Splash Shield .

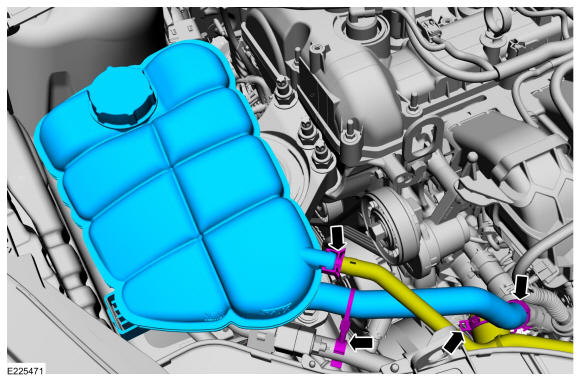

32. • Install the degas bottle and connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    • Attach the hoses and retainer.

    Courtesy of FORD MOTOR COMPANY

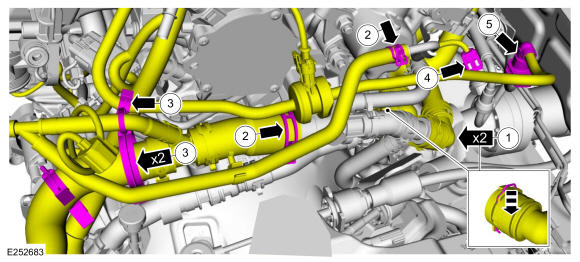

33. 1. Position the heater hoses and install the clips.
    2. Position the coolant hoses and install the clamps. Use the General Equipment: Hose Clamp Remover/Installer
    3. Attach the wiring and coolant hose retainers.
    4. Connect the fuel pressure sensor electrical connector.
    5. Connect the EVAP canister purge valve quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

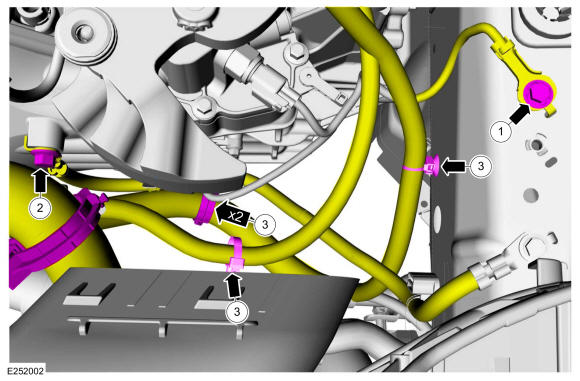

34. 1. Install the ground wire and the bolt.

       Torque

       : 106 lb.in (12 Nm)

    2. Install the ground cable and the bolt.

       Torque

       : 159 lb.in (18 Nm)

    3. Attach the wiring and hose retainers.

    Courtesy of FORD MOTOR COMPANY

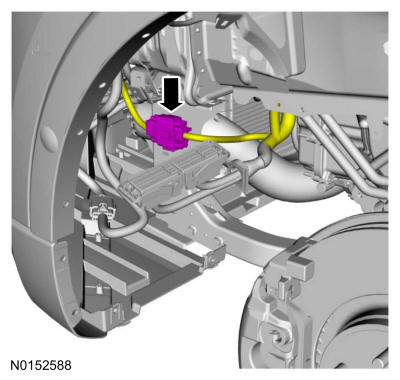

35. If equipped, connect the block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

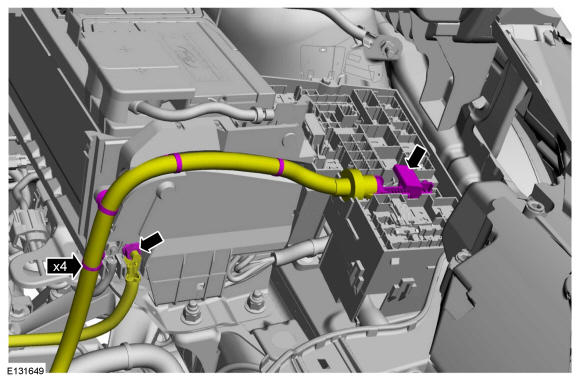

36. • Install the power feed cable and the nut.

      Torque

      : 106 lb.in (12 Nm)

    • Connect the main wiring harness to the fuse box and attach the retainers.

    Courtesy of FORD MOTOR COMPANY

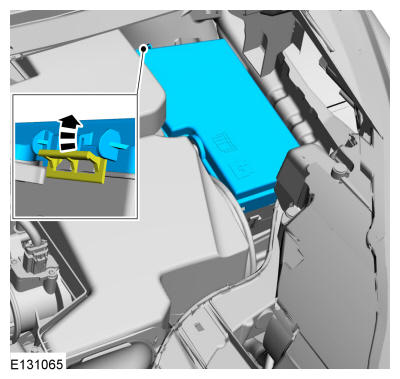

37. Close the junction box cover.

    Courtesy of FORD MOTOR COMPANY

38. Fill the engine with clean engine oil. Refer to: Specifications  .

    Courtesy of FORD MOTOR COMPANY

39. Install the following items:
    1. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    2. Install the cooling fan motor and shield. Refer to: Cooling Fan Motor and Shroud .
    3. Install the catalytic converter. Refer to: Catalytic Converter .

40. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
41. Bleed the clutch system. Refer to: Clutch System Bleeding - 6-Speed Manual Transmission - MMT6 .
42. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
