Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

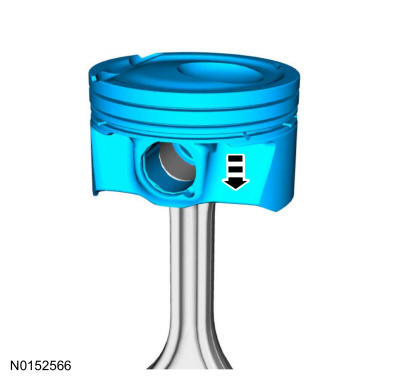

  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD266570Courtesy of FORD MOTOR COMPANY

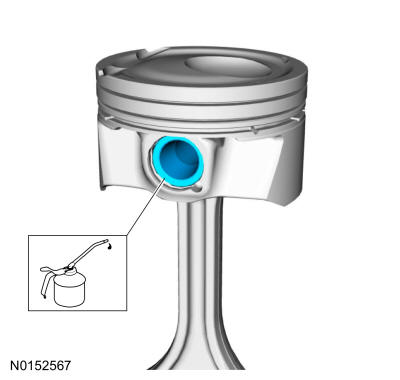

  2. Lubricate with clean engine oil and install the piston pin. Refer to: Specifications  .
    GFD266571Courtesy of FORD MOTOR COMPANY
  3. Install the piston pin retainers.
    GFD266572Courtesy of FORD MOTOR COMPANY

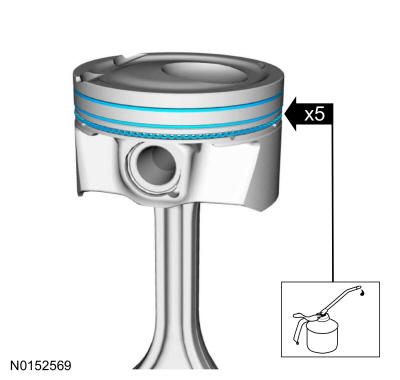

  4. Lubricate with clean engine oil and install the piston rings. Refer to: Specifications  .
    GFD266573Courtesy of FORD MOTOR COMPANY

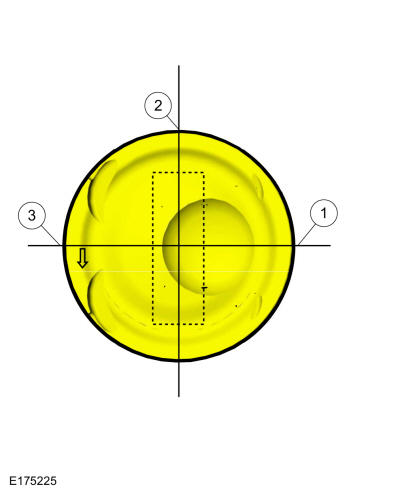

  5. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD266574Courtesy of FORD MOTOR COMPANY
