Engine - Component Location
WARNING: This page is about a different variant/trim than selected.
Front view of Engine
| Item | Description |
|---|---|
| 1 | High-pressure fuel pump |
| 2 | Recirculated air valve solenoid |
| 3 | Fuel pressure sensor |
| 4 | TC |

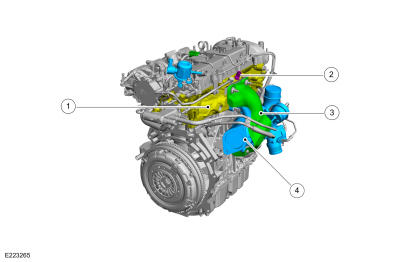

Rear view of Engine
| Item | Description |
|---|---|
| 1 | Cylinder Head Comments: with integrated exhaust manifold |
| 2 | Exhaust gas temperature sensor |
| 3 | TC heat shield |
| 4 | TC |

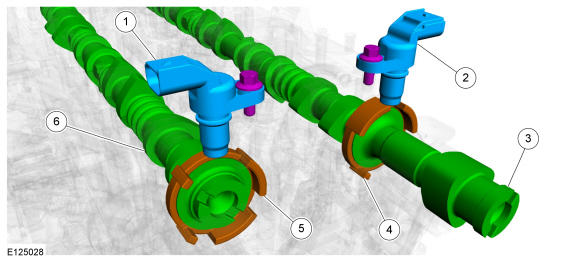

| Item | Description |
|---|---|
| 1 | CMP Sensor - intake camshaft |
| 2 | CMP Sensor - exhaust camshaft |
| 3 | Exhaust camshaft |
| 4 | Exhaust camshaft CMP sensor ring |
| 5 | Intake camshaft CMP sensor ring |
| 6 | Intake camshaft |
