Variable Valve Timing (VVT) Oil Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the valve cover. Refer to: Valve Cover .
-
NOTE: Note the position of the components before removal.NOTE: Make sure that the components are installed to the position noted before removal.

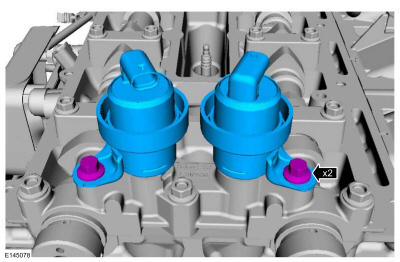

Remove the bolts and the VVT oil control solenoids.
Torque
: 89 lb.in (10 Nm)
