Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
-

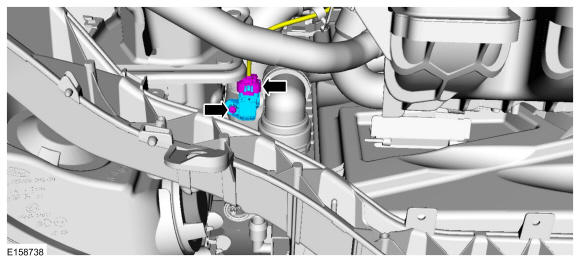

- Disconnect the turbocharger boost pressure sensor and charger air cooler temperature sensor electrical connector.
- Remove the retainer and the turbocharger boost pressure sensor and charger air cooler temperature sensor.
Torque
: 27 lb.in (3 Nm)
