Rear Knock Sensor (KS): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the intake manifold. Refer to: Intake Manifold .
-
-
NOTE: Note the position of the component before removal.NOTE: Make sure that the component is installed to the position noted before removal.

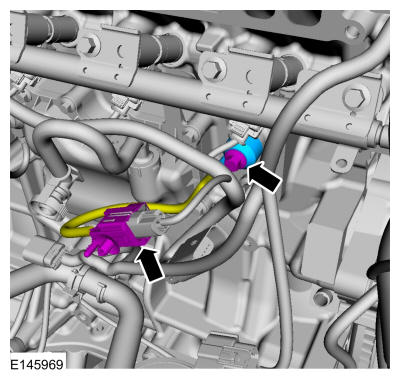

Disconnect the KS electrical connector.
- Remove the bolt and the KS.
Torque
: 177 lb.in (20 Nm)
-
