Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

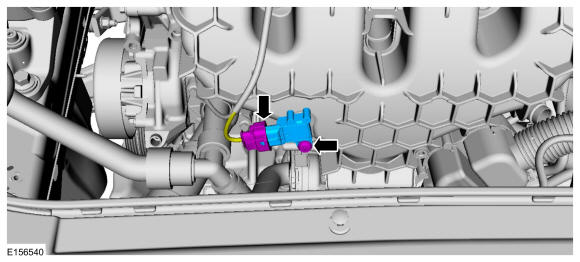

  1. Disconnect the electrical connector, remove the retainer and the MAP sensor.

    Torque

    : 44 lb.in (5 Nm)

GFD267378Courtesy of FORD MOTOR COMPANY
