Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different variant/trim than selected.

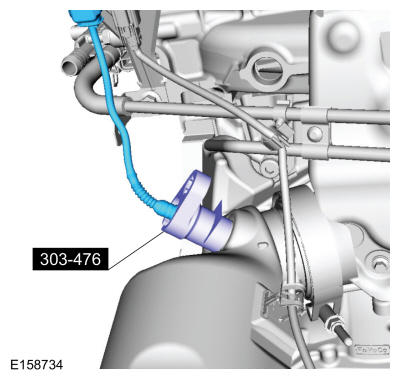

- Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formula below. Install the heated oxygen sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Torque
: 35 lb.ft (48 Nm)
- Connect the HO2S electrical connector, attach the wiring harness retainer and remove the special tool.
- Install the battery tray. Refer to: Battery Tray .
