Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
1. Remove the bolt.
  Torque

  : 44 lb.in (5 Nm)
2. Loosen the air cleaner outlet pipe clamps and remove the air cleaner outlet pipe.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
1. Disconnect and position aside the vent tube.
2. Remove the bolt.
  Torque

  : 44 lb.in (5 Nm)
3. Remove the retainer.
  Torque

  : 44 lb.in (5 Nm)
4. Loosen the air cleaner outlet pipe clamps and remove the air cleaner outlet pipe.
  Torque

  : 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY

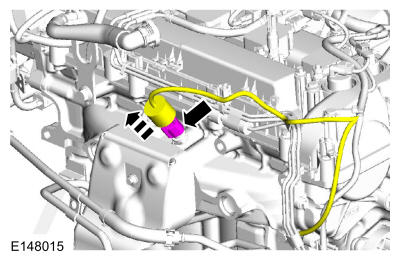

Slide the insulator up and disconnect the CHT sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

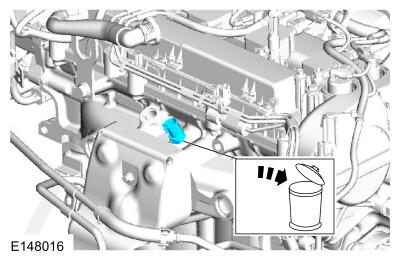

Discard the specified component. Follow local disposal regulations. Remove the CHT sensor.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
