Cylinder Head Temperature (CHT) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.
    • To install, reverse the removal procedure.

    • Install a new CHT sensor.

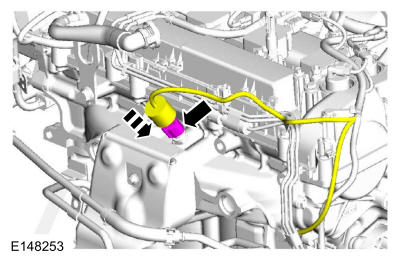

  2. Connect the CHT sensor electrical connector and slide the insulator down.
GFD267369Courtesy of FORD MOTOR COMPANY
