Camshaft Position (CMP) Sensor LH: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
-

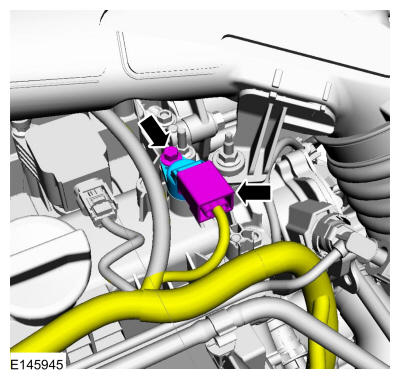

- Disconnect the CMP sensor electrical connector.
- Remove the retainer and the CMP sensor.
Torque
: 62 lb.in (7 Nm)
