Electronic Engine Controls - Component Location
WARNING: This page is about a different variant/trim than selected.

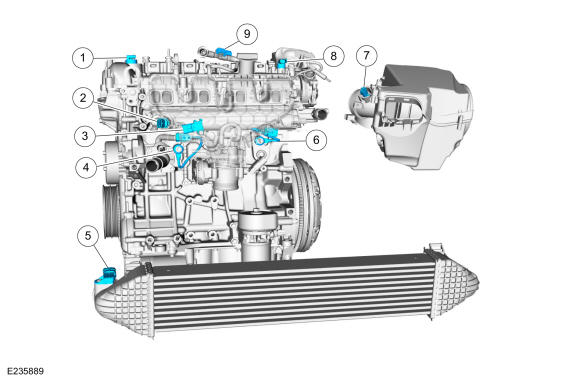

LH Engine
| Item | Description |
|---|---|
| 1 | Intake VCT oil control solenoid |
| 2 | FRP sensor |
| 3 | MAP sensor |
| 4 | Front KS |
| 5 | Turbocharger boost pressure and charge air temperature sensor |
| 6 | Rear KS |
| 7 | IAT sensor |
| 8 | Intake CMP sensor |
| 9 | Crankcase pressure sensor |

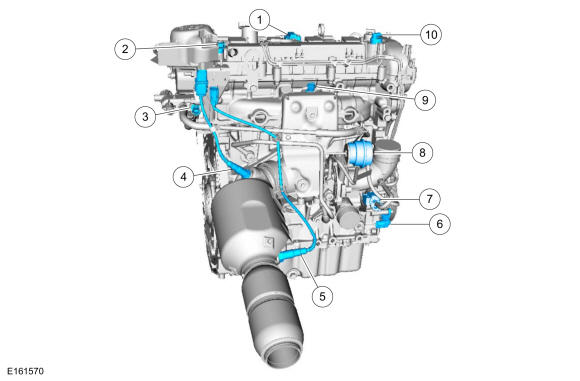

RH Engine
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve solenoid |
| 2 | Exhaust CMP sensor |
| 3 | ECT |
| 4 | HO2S |
| 5 | Catalyst monitor sensor |
| 6 | CKP sensor |
| 7 | Turbocharger wastegate regulating valve solenoid |
| 8 | Wastegate actuator |
| 9 | CHT sensor |
| 10 | Exhaust VCT oil control solenoid |

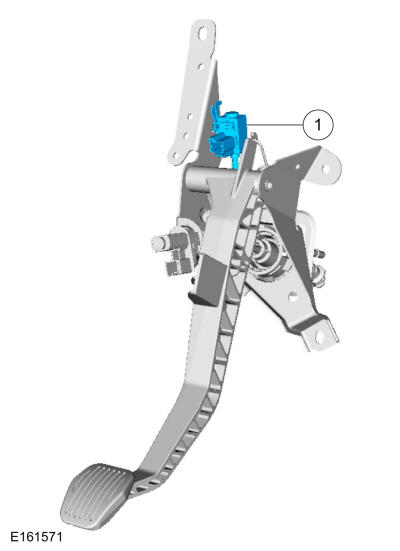

CPP Switch
| Item | Description |
|---|---|
| 1 | CPP switch |

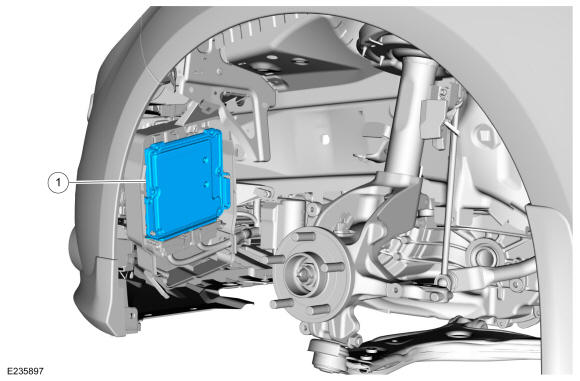

PCM
| Item | Description |
|---|---|
| 1 | PCM |
