Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the PMI routine. Use the General Equipment: Ford Diagnostic Equipment
Remove the LH front fender splash shield. Refer to: FENDER SPLASH SHIELD .

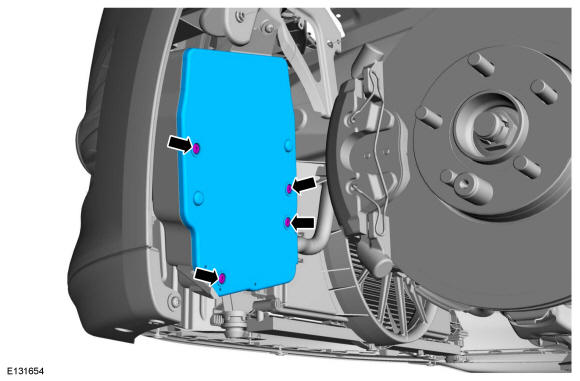

Remove the retainers and the access cover.

Courtesy of FORD MOTOR COMPANY

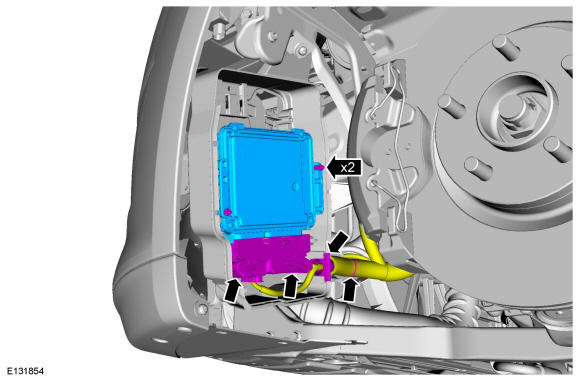

Disconnect the electrical connectors, position aside wiring harness and remove the PCM.

Courtesy of FORD MOTOR COMPANY
