Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the underbody shield.
-
NOTE: Lubricate the o-ring with clean engine oil.

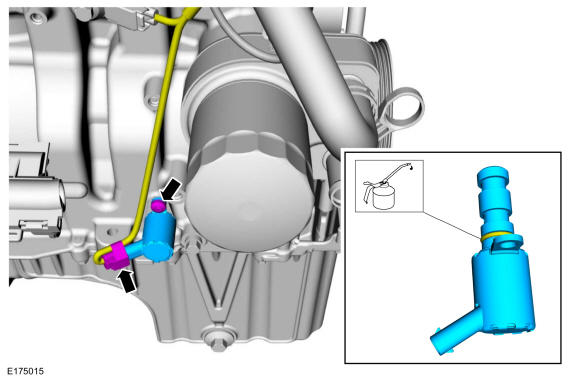

Disconnect the electrical connect, remove the retainer and sensor.
Material
: Motorcraft® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
Torque
: 80 lb.in (9 Nm)
