Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. .Disconnect the electrical connector from the IAT sensor
    GFD267315Courtesy of FORD MOTOR COMPANY

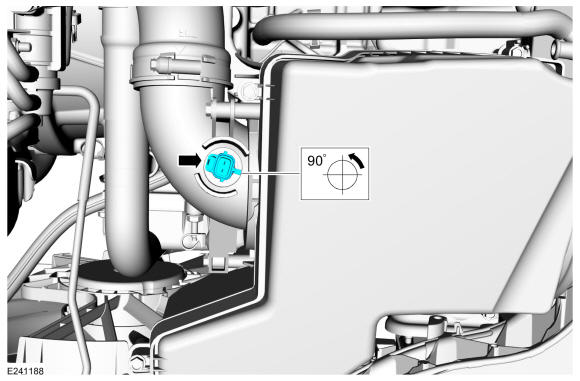

  2. .Remove the IAT sensor.
GFD267316Courtesy of FORD MOTOR COMPANY
