Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
- Remove the air cleaner outlet tube.
Torque
: 44 lb.in (5 Nm)
 Courtesy of FORD MOTOR COMPANY
|

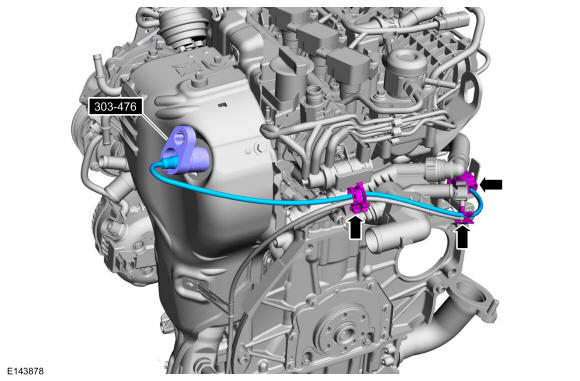

- Using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
 Courtesy of FORD MOTOR COMPANY
|
