Engine Coolant Temperature (ECT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine appearance cover.
    GFD264596Courtesy of FORD MOTOR COMPANY

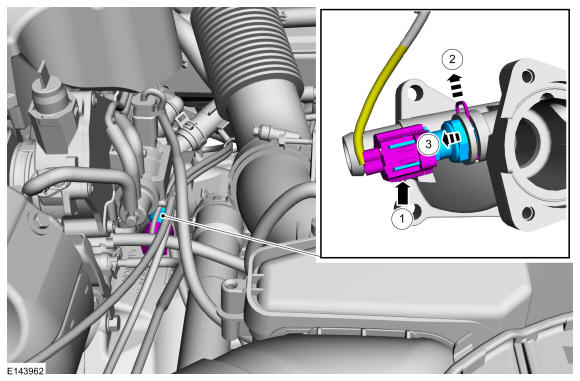

  2. NOTE: Be prepared to collect escaping fluid.

    • Disconnect the electrical connector.

    • Remove the retaining spring clip.

    • Remove the ECT sensor.

GFD267311Courtesy of FORD MOTOR COMPANY
